Water Heater Control Board PCBA with OEM Small Batch SMT

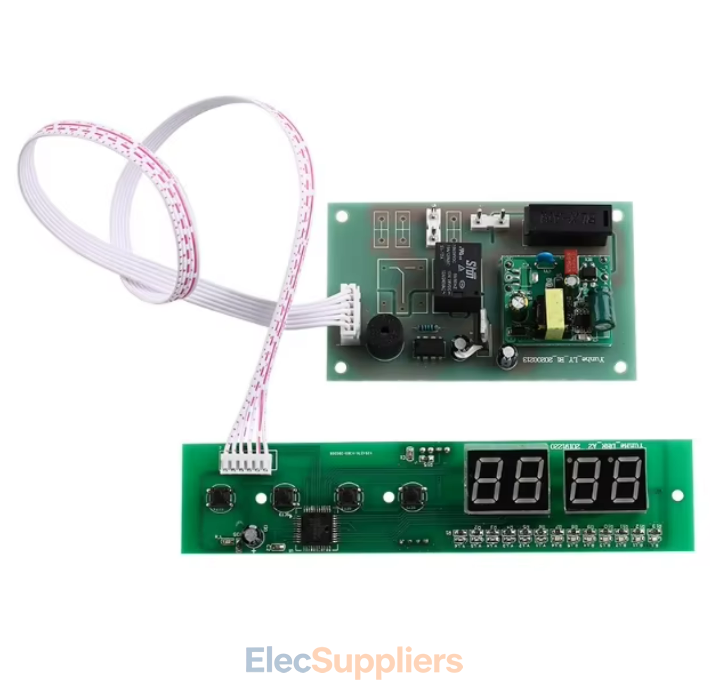

Water Heater Control Board PCBA

Custom water heater control board PCBA for electric water heaters, gas water heaters, tankless heaters and other heating systems. The service supports Gerber file PCB fabrication, small batch SMT assembly, component sourcing and functional testing.

The control board can integrate MCU control, heater switching, temperature sensing and multiple safety functions according to the requirements of the water heater system.

Key Features

• Custom water heater PCB control board

• OEM and small batch SMT assembly

• Gerber 274X and ODB++ file support

• PCB fabrication from customer design files

• SMT and DIP mixed assembly

• Component sourcing and BOM management

• Triac or relay heater control

• NTC temperature sensing

• Over-temperature protection

• Anti-dry-burn protection

• Leakage detection

• Heater load simulation testing

• High-voltage insulation testing

Gerber PCB Fabrication

Customers can provide Gerber files for PCB fabrication and assembly. The manufacturing service accepts Gerber 274X and ODB++ production data.

This allows OEM customers to use their existing PCB design while outsourcing board fabrication, component procurement and assembly to one manufacturing supplier.

Small Batch SMT Assembly

Small batch production is available for water heater control board development and OEM validation.

The service starts from 10 pieces for prototype and validation orders, while small-batch production can start from 100 pieces. Production quantities can then be scaled according to the customer's requirements.

SMT and DIP Assembly

The water heater PCBA uses a combination of SMT and DIP assembly where required by the circuit design.

Surface-mount components can be used for the MCU, sensors and control electronics, while through-hole assembly is suitable for relays, connectors and selected high-voltage components.

Wave soldering and conformal coating are also available according to the product requirements.

Water Heater Control and Power Switching

The control board can use a Triac or relay output for heater switching, with output current up to 16A according to the specified configuration.

The control system can be based on an 8-bit, 16-bit or 32-bit MCU with custom firmware. This allows the control logic to be adapted to different water heater operating modes and system requirements.

Temperature and Safety Control

Temperature sensing can use NTC thermistors together with other system sensors such as flow switches and flame sensors.

Safety functions can include over-temperature protection, anti-dry-burn protection and leakage detection. These functions are important for water heating equipment where the control board needs to monitor operating conditions and respond to abnormal situations.

Component Sourcing

Full BOM sourcing is available for OEM projects. Components such as ICs, relays, Triacs and connectors can be sourced according to the approved BOM.

When components have long lead times or supply issues, alternative parts can be proposed for customer approval before production.

Testing and Quality Control

The manufacturing process includes PCB inspection and electrical testing before delivery.

AOI and ICT can be used during production, followed by functional testing with heater load simulation. High-voltage insulation testing is available for mains-connected control boards.

These tests help verify assembly quality, electrical performance and the main control functions of the finished PCBA.

Technical Specifications

• Input Voltage: AC 100–240V, 50/60Hz

• Control MCU: 8/16/32-bit MCU

• Heater Drive: Triac or relay

• Maximum Heater Output: Up to 16A

• Sensors: NTC thermistor, flow switch, flame sensor

• Safety Functions: Over-temperature, anti-dry-burn, leakage detection

• PCB Material: FR4 / CEM-1

• PCB Layers: 1–4 layers

• High-Tg Option: Available

• Copper Weight: 1–3oz

• Surface Finish: Lead-Free HASL, ENIG, OSP

• Assembly: SMT + DIP

• Soldering: Wave soldering available

• Conformal Coating: Available

• Testing: AOI, ICT, FCT and high-voltage insulation testing

Applications

Electric Water Heaters

Control boards for electric storage water heaters, supporting temperature control, heater switching and safety monitoring.

Gas Water Heaters

PCBA solutions for gas water heater control systems with temperature sensing, flame-related monitoring and safety control functions.

Tankless Water Heaters

Compact control boards for instant water heaters requiring temperature and flow monitoring together with electronic heater control.

Heat Pump Water Heaters

PCBA manufacturing for heat pump water heater control systems where sensors, compressors, heaters and other system functions need to be coordinated.

Boiler Controllers

Custom control boards for boiler and heating equipment requiring temperature monitoring, switching and safety protection.

Smart Thermostatic Systems

Water heating control boards can also be integrated into smart thermostatic systems with customized MCU firmware and control functions.

OEM Water Heater PCBA Manufacturing

The manufacturing service covers the complete production process from Gerber PCB fabrication and component sourcing to SMT/DIP assembly and functional testing.

It is suitable for OEM customers developing new water heater products as well as companies that already have a proven Gerber design and need small-batch or larger-scale PCBA production.
