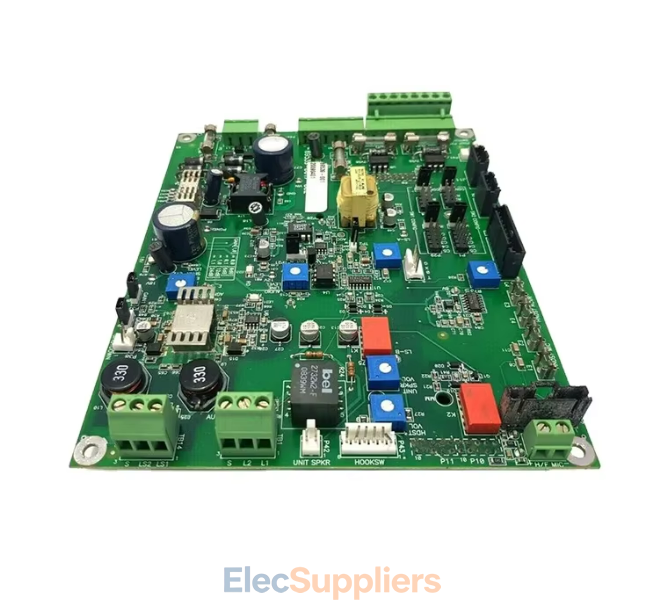

Product Details PCB Clone and Reverse Engineering ServiceCustom PCB cloning and reverse engineering service for obsolete, undocumented or legacy circuit boards. The service can start from an existing physical PCB and recover the schematic, extract the netlist, rebuild Gerber files and analyze the BOM before manufacturing replacement boards.The complete process combines reverse engineering, PCB fabrication and PCBA assembly in one production workflow.PCB Reverse EngineeringPCB reverse engineering is useful when the original design files, schematics or Gerber data are no longer available.Engineers can analyze an existing circuit board to recover its electrical structure and prepare manufacturing data for PCB reproduction.The process can include:PCB schematic recoveryNetlist extractionGerber reconstructionODB++ data rebuildingBOM analysisComponent identificationObsolete component replacementPCB Clone from Physical BoardA physical PCB can be used as the starting point for the cloning process. The board is analyzed to reproduce the circuit structure and PCB construction.This approach is suitable for legacy equipment where the original PCB supplier is no longer available or the original manufacturing files cannot be obtained.The reproduced board can then be manufactured and assembled through the same production facility.Schematic Recovery and Gerber RebuildSchematic recovery converts the information contained in the existing PCB into usable circuit documentation.After the circuit structure is analyzed, Gerber or ODB++ manufacturing data can be rebuilt for PCB fabrication.This allows customers to move from an existing physical board to a reproducible manufacturing design without requiring the original CAD files.BOM Analysis and Obsolete Component ReplacementLegacy electronic products may contain discontinued or end-of-life components.The reverse engineering service includes BOM analysis and component replacement support for obsolete parts. Suitable alternatives can be evaluated according to electrical characteristics, package type and availability.This can help maintain the original circuit functionality while supporting continued production of legacy equipment.PCB FabricationReconstructed PCB data can be used for local PCB fabrication in Shenzhen.The service supports 1 to 32 layer PCB designs and multiple PCB material options, including FR4, High-Tg FR4, Rogers, aluminum and flexible PCB materials.The board construction can be customized according to the original PCB or the requirements of an updated design.SMT, DIP and BGA AssemblyAfter PCB fabrication, the cloned board can proceed directly to PCBA manufacturing.The assembly process supports SMT, DIP and BGA components, with turnkey or consignment assembly options.Component sourcing, soldering, inspection and functional testing can be integrated into the same production process.PCB Assembly Inspection and TestingInspection and testing are available to verify the reproduced PCB and assembled PCBA.Available processes include AOI, X-Ray, flying probe testing, ICT and functional testing.Testing requirements can be selected according to the circuit design and the application of the original equipment.One-Stop PCB Clone and EMSThe reverse engineering laboratory, PCB fabrication and PCBA assembly operations are located within the Shenzhen manufacturing operation.This allows the project to move directly from PCB analysis to fabrication, assembly and testing without transferring the design between different suppliers.The service can cover prototype development, small-batch production and mass production.NDA and IP ProtectionPCB reverse engineering projects often involve proprietary circuit designs and legacy product information.NDA and confidentiality agreements are available for reverse engineering projects. Design information and project documentation can be handled under agreed confidentiality requirements.OEM and Custom PCB ReplicationThe service can be used for OEM replacement boards, legacy product reproduction and custom electronic product development.Customers can provide an existing PCB, available documentation or partial design files for project evaluation.The engineering process can then determine the required PCB data, component information and manufacturing process.PCB Clone ApplicationsObsolete Industrial Control BoardsReplacement PCB production for industrial equipment where the original control board is obsolete or no longer supplied.Legacy Equipment Spare BoardsReplication of circuit boards used in older machines and electronic equipment to maintain spare-part availability.Automotive ElectronicsReverse engineering and PCB reproduction for automotive modules and electronic control boards.Medical EquipmentReplacement board development for selected medical and laboratory equipment where original PCB manufacturing data is unavailable.Telecom and Networking EquipmentPCB replication for legacy communication equipment, networking hardware and related electronic modules.Power and Energy ElectronicsReplacement and reproduction of power management, energy control and related electronic boards.Consumer ElectronicsReverse engineering and reproduction of consumer electronic mainboards and control boards.New Product DevelopmentPCB reverse engineering can also be used when an existing reference board needs to be analyzed as part of a new product development project.Technical SpecificationsService Type: PCB Clone, Reverse Engineering and EMS AssemblyPCB Layers: 1–32 layersPCB Materials: FR4, High-Tg FR4, Rogers, Aluminum, FlexibleReverse Engineering: Schematic Recovery, Netlist Extraction, Gerber Rebuild, BOM AnalysisManufacturing Data: Gerber / ODB++Assembly: SMT + DIP + BGAAssembly Type: Turnkey / ConsignmentComponent Support: Obsolete and EOL Component ReplacementInspection: AOI, X-Ray, Flying ProbeTesting: ICT, FCTQuality System: ISO9001:2015Assembly Standard: IPC-A-610 Class 2/3Environmental Compliance: RoHSPrototype Lead Time: 5–7 daysProduction Lead Time: 2–3 weeksIP Protection: NDA / Confidentiality AgreementProduction: Prototype, Small Batch and Mass ProductionCustom PCB Reverse Engineering and ReplicationThe PCB clone service provides a complete path from physical circuit board analysis to manufacturing.Schematic recovery, Gerber reconstruction, BOM analysis, PCB fabrication, component sourcing, SMT/DIP/BGA assembly and testing can be handled as one project.This makes the service suitable for obsolete PCB replacement, legacy equipment maintenance and electronic product redevelopment.
