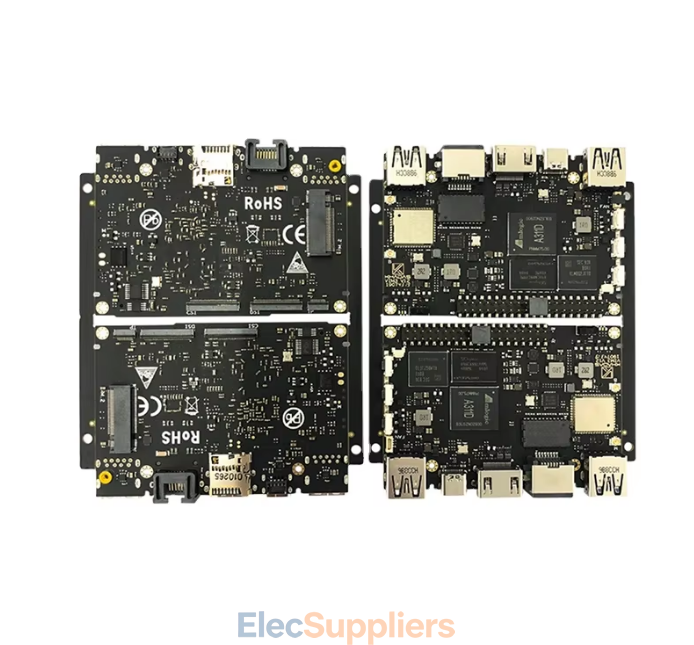

MCPCB and Motherboard PCBA EMS Manufacturing Service

This service combines metal core PCB fabrication with motherboard PCBA manufacturing for electronic products that require thermal management, complex assembly or higher-power circuit designs.

MCPCBA manufactures aluminum and copper core PCBs as well as multilayer motherboards, with SMT, DIP, BGA and mixed-technology assembly. The EMS service covers PCB fabrication, component sourcing, assembly, testing and delivery.

Aluminum and Copper Core MCPCB

The MCPCB option uses aluminum or copper core substrates for applications where heat dissipation is an important part of the PCB design.

The listed thermal conductivity is 1.0-3.0 W/mK for the metal-core substrate. Board thickness for MCPCB is 0.8-3.2mm, with copper thickness from 1oz to 6oz.

Motherboard PCBA Assembly

The motherboard PCBA service supports complex multilayer boards with BGA devices, connectors and press-fit components.

The manufacturing capability covers up to 20 PCB layers, with motherboard thickness up to 6.0mm. Component capability includes BGA packages down to 0.4mm pitch and components ranging from 01005 devices to large connectors.

SMT, DIP and BGA Assembly

The PCBA manufacturing process supports SMT, DIP, BGA, press-fit and mixed-technology assembly.

This makes the service suitable for boards combining fine-pitch ICs, BGA packages, connectors, power devices and through-hole components on the same assembly.

Full EMS Manufacturing Service

The EMS service covers more than PCB assembly. It includes component sourcing, BOM management, DFM review, conformal coating, testing and box-build assembly.

Customers can therefore use one manufacturing workflow for PCB fabrication, component procurement, PCBA assembly, inspection and final product assembly.

Testing and Quality Control

Inspection and testing can include AOI, SPI, X-Ray, ICT, functional testing and burn-in.

Production is listed as ISO9001:2015 certified, with IPC-A-610 Class 2/3 workmanship requirements. These processes can be used to check soldering, component placement and electrical performance before delivery.

MCPCB and Motherboard PCB Specifications

• Board Type: MCPCB, Motherboard, Multilayer PCB

• Core Material: Aluminum / Copper

• Thermal Conductivity: 1.0-3.0 W/mK

• Layer Count: 1-20 layers

• MCPCB Thickness: 0.8-3.2mm

• Motherboard Thickness: Up to 6.0mm

• Copper Thickness: 1oz-6oz

• Surface Finish: HASL, ENIG, ENEPIG, OSP, Immersion Silver

• Assembly: SMT, DIP, BGA, Press-Fit, Mixed Technology

• BGA Pitch: Down to 0.4mm

• Component Size: 01005 to large connectors

• Testing: AOI, SPI, X-Ray, ICT, FCT, Burn-in

• Quality Standard: ISO9001:2015, IPC-A-610 Class 2/3

• EMS Services: Component Sourcing, Conformal Coating, Box-Build

• Prototype Lead Time: 5-10 days

MCPCB PCBA Applications

Power Supplies and Power Management

Metal-core PCBA solutions for power supplies and power management boards where thermal performance is important.

Industrial Motherboards and Control Mainboards

Multilayer motherboard PCBA for industrial computers, control systems and industrial equipment.

LED Lighting and Driver Modules

MCPCB manufacturing for LED lighting boards and driver circuits requiring effective heat dissipation.

Communication Equipment

Motherboard and PCBA solutions for communication equipment and related electronic systems.

Automotive Electronics

Custom PCB and PCBA manufacturing for automotive electronic applications.

Consumer Electronics and Computing Devices

Motherboard PCBA manufacturing for consumer electronics, computing equipment and other electronic products.

Prototype to Mass Production

The manufacturing service supports prototypes, pilot runs and mass production. Prototype production is listed at 5-10 days, while mass production is scheduled according to the project requirements.

The same production workflow can cover PCB fabrication, component sourcing, assembly, testing and final delivery from initial samples through volume production.

Custom MCPCB and Motherboard PCBA

Customers can provide PCB design files, BOMs and assembly requirements for engineering review and production.

The service can combine aluminum or copper core PCB fabrication with SMT, DIP, BGA and press-fit assembly, along with testing, conformal coating and box-build services for complete EMS manufacturing.
