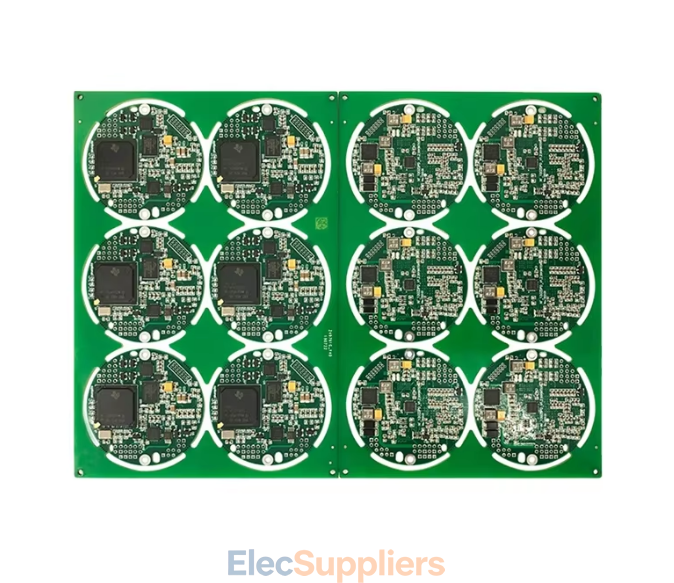

Industrial Control Board PCBA with MCPCB and FR-4 Options

Custom Industrial Control Board PCBA

This custom industrial control board PCBA is designed for automation, control and industrial electronic equipment. The manufacturing service supports high-TG FR-4, aluminum MCPCB and Rogers hybrid boards for different electrical, thermal and mechanical requirements.

The production process covers PCB fabrication, component sourcing, SMT and DIP assembly, conformal coating, testing and enclosure assembly. OEM and ODM manufacturing is available from prototype and small-batch production through mass production.

MCPCB and High-TG FR-4 Boards

Different PCB materials can be selected according to the application. High-TG FR-4 is suitable for general industrial control circuits, while aluminum MCPCB provides improved heat dissipation for boards containing power components.

Rogers hybrid construction is also available for designs that require specific high-frequency or electrical performance.

The source page lists 2 to 16 layers, 1oz to 6oz copper and board thickness from 0.8mm to 3.2mm. Heavy copper options are available for power circuits.

SMT and DIP Mixed Assembly

Industrial control boards often combine surface-mount devices with relays, connectors, transformers and other through-hole components.

The assembly service supports SMT and DIP mixed assembly, as well as BGA and press-fit components. This allows different component types to be integrated on the same industrial control board.

Industrial-Grade Components

The PCBA can use industrial and extended-temperature components for equipment operating in demanding environments. The source page specifies a component operating range of -40°C to +85°C.

This makes the board suitable for industrial automation equipment, control cabinets, power management systems and other applications where stable long-term operation is required.

Conformal Coating and Board Protection

For equipment exposed to moisture, dust or corrosive environments, conformal coating can be added to the assembled PCB.

Available coating options include acrylic, silicone and polyurethane. The coating process can be selected according to the environmental conditions and protection requirements of the finished equipment.

PCB Assembly and Testing

Quality inspection and testing can include AOI, X-Ray, ICT, functional testing and aging tests.

These inspection methods cover solder joints, component placement, electrical performance and overall board operation. Testing can be defined according to the requirements of the industrial control system.

The listed quality standards include ISO9001 and IPC-A-610 Class 2/3.

OEM and ODM Industrial Control PCBA

Custom industrial control boards can be manufactured from customer schematics, Gerber files and BOMs. DFM review and design optimization can be included before production.

For OEM projects, the existing customer design can be manufactured according to the supplied documentation. For ODM projects, the manufacturing process can also support design-related requirements and production optimization.

Prototype to Mass Production

The service supports prototype orders, small-batch production and mass production. This allows an industrial control board to move from initial engineering samples to larger production quantities without changing the basic manufacturing process.

Component sourcing, PCB fabrication, assembly and testing can be combined into one production workflow.

Industrial Control PCBA Applications

PLC and Industrial Automation Controllers

Control boards for PLC systems, automation equipment and industrial control cabinets.

Motion Control and Servo Drives

PCBA solutions for motion controllers, servo drive systems and related industrial equipment.

Industrial IoT Gateways

Control boards for industrial IoT gateways, edge computers and connected factory equipment.

Power and Energy Management

PCBA for power monitoring, energy management and industrial power control systems.

HVAC and Building Automation

Control boards for HVAC equipment and building automation systems.

Test and Measurement Equipment

Industrial control PCBA for electronic test instruments and measurement equipment.

Technical Specifications

• Board Type: Industrial Control Board, MCPCB, Multilayer PCB

• Base Material: High-TG FR-4, Aluminum MCPCB, Rogers Hybrid

• Layer Count: 2-16 layers

• Copper Thickness: 1oz-6oz

• Board Thickness: 0.8mm-3.2mm

• Assembly: SMT + DIP Mixed Assembly, BGA, Press-Fit

• Component Grade: Industrial / Extended Temperature

• Surface Finish: HASL, ENIG, ENEPIG, OSP

• Conformal Coating: Acrylic, Silicone, Polyurethane

• Testing: AOI, X-Ray, ICT, FCT, Aging Test

• Quality Standard: ISO9001, IPC-A-610 Class 2/3

• Production: Prototype, Small Batch, Mass Production

Custom Industrial Control Board Manufacturing

This industrial control PCBA service is suitable for companies that need a custom control board manufactured for automation, power management, motion control or connected industrial equipment.

Customers can provide schematics, Gerber files and BOMs for engineering review. The manufacturing process can then cover PCB fabrication, component sourcing, SMT and DIP assembly, protective coating and functional testing according to the project requirements.
