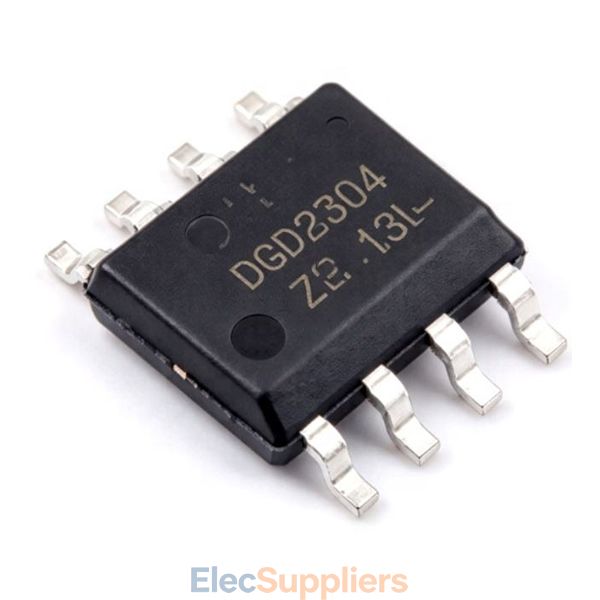

Product Details The DGD2304S8-13 is a high-voltage half-bridge gate driver designed to control N-channel MOSFETs and IGBTs in switching power and motor-control applications. It integrates high-side and low-side driver channels in a compact SO-8 package, providing a practical interface between control logic and high-power switching devices.The device uses a bootstrap high-side driver architecture that supports high-side switching voltages up to 600V. This allows the DGD2304S8-13 to control half-bridge power stages where the high-side MOSFET or IGBT operates at a substantially higher potential than the system logic ground.The driver contains two independent output channels configured for half-bridge operation. It provides a typical source current capability of 290mA and sink current capability of 600mA, allowing the connected power switches to be driven with relatively strong gate-charge and discharge currents.The DGD2304S8-13 accepts standard TTL and CMOS-compatible logic inputs, including 3.3V control signals. Schmitt-triggered inputs and internal pull-down structures help provide stable logic control when connected to microcontrollers, digital controllers or other PWM control circuits.An internal 100ns dead-time function helps prevent simultaneous conduction of the high-side and low-side switching devices. This is particularly important in half-bridge circuits because unwanted overlap between the two switches can result in shoot-through current and increased power loss.The device also incorporates undervoltage lockout for both high-side and low-side drivers. This function helps prevent the external MOSFETs or IGBTs from being driven under insufficient gate-drive voltage conditions.The DGD2304S8-13 is supplied in an SO-8 package and is designed for extended-temperature operation. Its compact package and integrated two-channel gate-drive architecture make it suitable for power conversion and switching applications where PCB space and driver integration are important.Typical applications include DC-DC converters, DC-AC inverters, AC-DC power supplies, motor-control systems and Class D power amplifiers. It can also be used in industrial power electronics and other switching circuits requiring high-side and low-side control of N-channel MOSFETs or IGBTs.For power-stage design, the gate-drive supply voltage, bootstrap components, switching frequency, gate charge and PCB layout should be selected according to the specific MOSFET or IGBT and operating conditions. Proper dead-time and thermal design are also important for achieving reliable switching performance.
