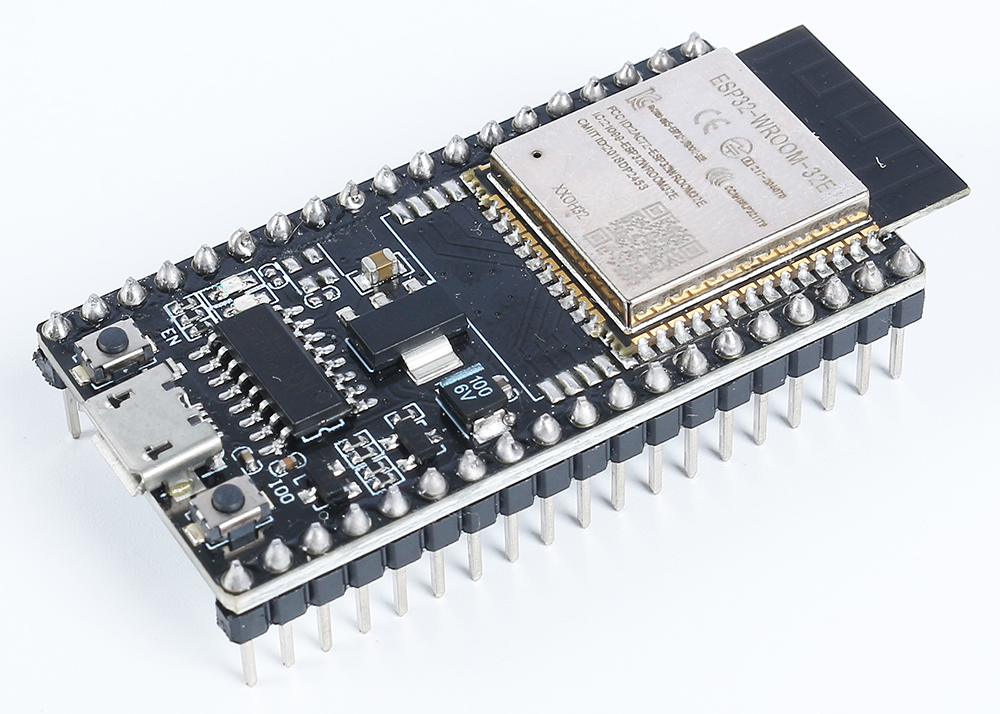

ESP32-WROOM-32E is a compact wireless module based on the ESP32 series of systems-on-chip. It combines Wi-Fi and Bluetooth connectivity with a dual-core microcontroller, making it possible to build connected products without designing a complete RF section from the beginning.
The module is widely suited to IoT devices, smart control systems, wireless sensors, industrial equipment, home automation and other embedded products that require wireless communication and local processing.
ESP32-WROOM-32E integrates the main components required for a wireless embedded system into a single module.
The module includes an ESP32 chip, flash memory, crystal oscillator, RF matching components and an onboard antenna configuration.
This integration reduces the amount of RF circuitry that needs to be designed on the main PCB.
Instead of placing the wireless chipset and supporting RF components directly on the product board, engineers can use the module as a pre-integrated wireless processing unit.
This can simplify PCB development and reduce the complexity of an IoT hardware design.
ESP32-WROOM-32E is built around a dual-core Xtensa LX6 processor architecture.
The processor can operate at up to 240 MHz and the module includes 4 MB of embedded flash memory.
The module supports 2.4 GHz Wi-Fi and Bluetooth connectivity and provides a large number of configurable peripheral interfaces through its GPIO pins.
Its operating supply is typically 3.3V, making it suitable for many modern embedded controller designs.
The exact GPIO availability depends on the module configuration and the functions assigned to individual pins.
Wi-Fi connectivity is one of the primary reasons to use ESP32-WROOM-32E.
The module supports 2.4 GHz 802.11 b/g/n Wi-Fi and can connect an embedded product to a local wireless network.
This allows the device to communicate with cloud services, mobile applications, local servers and other network-connected equipment.
For an IoT product, the ESP32 can handle both application processing and wireless communication, reducing the need for a separate Wi-Fi controller.
In addition to Wi-Fi, ESP32-WROOM-32E supports Bluetooth functionality.
This allows the same hardware platform to support short-range wireless communication and Wi-Fi networking.
Bluetooth can be useful for device configuration, local control, data exchange and communication with smartphones or other nearby equipment.
A product can therefore use Wi-Fi for network connectivity while using Bluetooth for local setup or maintenance.
GPIO flexibility is another important feature of the ESP32 platform.
The module exposes numerous programmable pins that can be assigned to different digital and peripheral functions.
Depending on the application, these interfaces can be used for buttons, LEDs, sensors, relays, displays and other external hardware.
However, not every physical pin should be treated as an unrestricted GPIO.
Some pins have boot-related functions or special peripheral roles, so the complete ESP32-WROOM-32E pin configuration should be reviewed before assigning pins in a new PCB design.
The module provides several common peripheral interfaces for connecting external components.
These include UART, SPI and I2C-related functionality, along with PWM, ADC and other peripheral resources supported by the ESP32 architecture.
This makes the module suitable for systems that combine wireless communication with sensors, displays, motor controllers and other embedded peripherals.
For example, an IoT controller could communicate with a sensor through I2C, drive an actuator through GPIO and simultaneously send data to a cloud server over Wi-Fi.
ESP32-WROOM-32E is particularly suitable for IoT products because wireless connectivity and application processing are integrated into one platform.
A connected sensor can collect data locally and transmit it through Wi-Fi.
A smart control device can receive commands from a network while controlling relays or other hardware.
A portable product can use Bluetooth for initial configuration and Wi-Fi for normal operation.
These architectures can be implemented without adding a separate Wi-Fi or Bluetooth module to the design.
Smart home products often require both wireless networking and local control.
ESP32-WROOM-32E can be used in smart switches, environmental sensors, lighting controllers and other connected devices.
The module can communicate with a local Wi-Fi network while its GPIO and peripheral interfaces connect to the product's sensors and control circuitry.
Bluetooth can also be useful during installation, allowing a smartphone to configure network credentials or device parameters.
The module can also be used in industrial monitoring and control systems where wireless connectivity is required.
Examples include equipment monitoring, remote sensor nodes, data collection devices and wireless control interfaces.
An ESP32-based controller can collect data from local sensors and transmit it to a central system.
For industrial environments, however, the complete product should include appropriate power protection, EMC design, enclosure design and communication security according to the operating conditions.
The module itself does not replace the need for system-level industrial design.
ESP32-WROOM-32E operates from a low-voltage power supply, typically around 3.3V.
Although the module operates at a low voltage, Wi-Fi transmission can produce relatively high instantaneous current demand compared with the average current of a simple microcontroller.
The power supply should therefore be designed with adequate current capability and good transient response.
Insufficient power supply performance can cause wireless instability, unexpected resets or communication failures.
A suitable decoupling network should also be placed close to the module's power connections.
RF performance depends heavily on PCB design around the antenna.
ESP32-WROOM-32E versions using an onboard antenna require an appropriate antenna keep-out area.
Copper, ground planes, metal components and enclosure materials placed too close to the antenna can affect wireless performance.
The module should therefore be positioned carefully on the main PCB.
If the product uses a metal enclosure, the antenna location becomes even more important because the enclosure can significantly affect the RF characteristics.
The module simplifies RF design, but it does not eliminate the need for careful PCB layout.
The antenna area should be kept clear according to the module's layout recommendations.
The power supply should use short and appropriately sized connections.
High-noise switching circuits should be positioned away from the RF section where practical.
External clocks, high-current switching paths and motor-control circuits can introduce electromagnetic interference that affects wireless performance.
A well-designed PCB can therefore make a significant difference to the stability of the final product.
ESP32-WROOM-32E can be programmed as the main controller of an embedded product.
It can execute application firmware while simultaneously managing wireless communication.
Developers can use Espressif's software ecosystem and development tools to build applications for the ESP32 platform.
The module can also be programmed through common development environments used for ESP32-based projects.
For production products, the firmware architecture should account for Wi-Fi management, Bluetooth operation, GPIO configuration, power states and error recovery.
The module includes 4 MB of flash memory.
This memory can store application firmware as well as other information required by the embedded system.
The available memory should be considered when an application includes a large firmware image, networking stacks, graphical resources or local data storage.
Products with more demanding memory requirements may need to use another ESP32 module with a larger flash configuration.
ESP32-WROOM-32E is also popular in prototype development because one module can provide processing, Wi-Fi and Bluetooth capabilities.
A prototype can therefore be built without designing a complete wireless hardware platform from scratch.
Once the software architecture has been validated, the same module can potentially be carried into a production PCB design.
This can reduce the transition between proof of concept and manufacturing.
ESP32-WROOM-32E can be used in a broad range of connected products.
Typical applications include smart home controllers, wireless sensors, industrial monitoring devices, IoT gateways, remote control systems, smart lighting, environmental monitors, consumer electronics and connected instruments.
Its combination of processing capability and wireless connectivity makes it especially useful for products that need both local control and network communication.
When selecting an ESP32-WROOM-32E replacement, engineers should compare the wireless functions, processor architecture, memory configuration, GPIO availability, antenna type and module dimensions.
A replacement module may use the same ESP32 family but have a different flash size or antenna configuration.
The PCB footprint should also be checked carefully.
Software compatibility is another important consideration because different ESP32 modules may expose different pins or peripheral resources.
An alternative to ESP32-WROOM-32E may be appropriate when a product needs different memory capacity, antenna configuration, wireless technology or module size.
For a Wi-Fi-only product, another wireless MCU may provide a simpler solution.
For products requiring Bluetooth Low Energy as the primary wireless interface, a BLE-focused device may consume less power.
For applications requiring cellular connectivity, a cellular module may be more appropriate than a Wi-Fi MCU.
The best alternative depends on the product's wireless range, power budget, network requirements and processing needs.
Before selecting ESP32-WROOM-32E, engineers should determine the required wireless protocol, memory capacity and number of external interfaces.
The power supply should be evaluated under peak wireless transmission conditions rather than only under normal MCU operation.
The antenna position and PCB keep-out area should be considered from the beginning of the mechanical and electrical design.
Developers should also identify boot-related pins and reserved functions before assigning GPIO resources.
ESP32-WROOM-32E is a strong choice for embedded products that need Wi-Fi, Bluetooth and microcontroller functionality in one compact module.
It can simplify the hardware architecture of IoT products by integrating the processor, wireless functions, flash memory and RF circuitry into a ready-to-use module.
For a new design, the most important considerations are power supply capability, antenna layout, GPIO assignment, memory requirements and wireless application requirements.
For an existing design, module dimensions, pin compatibility, flash configuration and firmware requirements should be checked before selecting an alternative.
