As robots, smart devices, and industrial automation systems become more intelligent, accurate environmental perception has become an important requirement for modern electronic products. Traditional cameras can capture images and videos, but they cannot provide accurate distance information, which limits their performance in applications that require three-dimensional understanding.
The C005 iToF 3D Camera Module is a compact depth sensing solution based on iToF (Indirect Time-of-Flight) technology. It enables devices to collect real-time depth information and better understand the position, distance, and shape of objects in the surrounding environment.
With a 640×480 resolution ToF sensor, wide field of view, stable measurement performance, and low computing requirements, the C005 iToF 3D Camera Module is designed for applications such as robotics, machine vision, smart devices, industrial automation, and intelligent control systems.
An iToF 3D Camera Module is a depth sensing device that uses light signals to measure the distance between the camera and objects. The module emits modulated infrared light and calculates the phase difference between the emitted and reflected signals to obtain depth information.
Unlike traditional 2D cameras that only provide color and brightness data, an iToF camera can provide three-dimensional information for each pixel. This allows intelligent systems to understand the surrounding environment more accurately.
With depth sensing capability, devices can perform tasks such as:
Object distance measurement
3D environment recognition
Obstacle detection
Object positioning
Spatial analysis
This makes iToF technology an important solution for next-generation robotics and intelligent electronic systems.
The C005 iToF 3D Camera Module uses a 640×480 resolution ToF sensor to capture detailed depth information in real time.
High-resolution depth data helps improve system performance in applications where accurate spatial information is required, including:
Robot navigation
Machine vision inspection
3D measurement
Smart recognition systems
Industrial automation
Compared with conventional vision solutions, the module provides additional depth information, allowing equipment to make more accurate decisions based on the real environment.
A wide field of view is important for applications that require large-area detection. By covering a wider viewing range, a 3D camera module can collect more environmental information and reduce the need for multiple sensors.
The C005 provides a wide FOV:
Diagonal FOV: 110.3°
Horizontal FOV: 89.7°
Vertical FOV: 68.3°
This wide-angle design makes the module suitable for mobile robots, intelligent equipment, and automation systems that need better awareness of surrounding objects.
For example, robots can detect nearby obstacles more effectively, while industrial equipment can improve object recognition and positioning accuracy.
The C005 ToF depth camera module supports a measurement range from 0.1m to 5m, covering many indoor and outdoor application scenarios.
In indoor environments, the module can be used for:
Robot vacuum cleaners
Service robots
Smart elevators
Smart access control systems
Human detection applications
In outdoor and industrial environments, it can support:
Delivery robots
Lawn mowing robots
AGV and AMR systems
Industrial automation equipment
The combination of accurate measurement distance and stable depth sensing makes the C005 suitable for various intelligent devices that require real-time environmental perception.
For embedded products, computing efficiency is an important factor. Processing large amounts of image data can increase system complexity, power consumption, and hardware costs.
The C005 iToF 3D Camera Module is designed to provide efficient depth information output, helping reduce the processing workload of the main controller.
This low CPU load feature makes it suitable for:
Edge AI devices
Compact robots
Embedded vision systems
Intelligent terminals
Automation controllers
The module supports MIPI CSI-2 high-speed data transmission and IIC control interface, allowing easier integration with embedded platforms.
Many electronic devices operate in environments with changing lighting conditions and temperatures. Reliable depth sensing performance is essential for these applications.
The C005 iToF 3D Camera Module integrates:
Ambient light suppression technology
Temperature compensation function
These features help improve measurement stability and maintain reliable performance under different working conditions.
The module supports:
Measurement accuracy: ±1%
Operating temperature: -20℃ to 65℃
Laser safety: Class 1 (IEC60825-1:2014)
This makes it suitable for both indoor and outdoor 3D sensing applications.
The C005 iToF 3D Camera Module can be used in a wide range of industries where accurate depth information is required.
Robots need reliable perception capabilities to navigate safely and efficiently.
The module provides depth information for:
Obstacle avoidance
Navigation assistance
Environmental mapping
Autonomous movement
Typical applications include robot vacuum cleaners, service robots, delivery robots, and autonomous mobile robots.
In manufacturing and automation systems, 3D vision technology helps machines understand object position and size.
The C005 can support:
Object measurement
Package volume calculation
Automated sorting
Robotic picking
Industrial inspection
By adding depth information, machines can achieve higher accuracy and flexibility compared with traditional 2D vision systems.
3D depth sensing is also becoming increasingly important in smart consumer and commercial products.
Applications include:
Smart door locks
Access control terminals
Intelligent gates
Interactive devices
Depth information can improve recognition accuracy and enable more advanced user interaction.
For many embedded applications, product size and integration flexibility are critical factors.

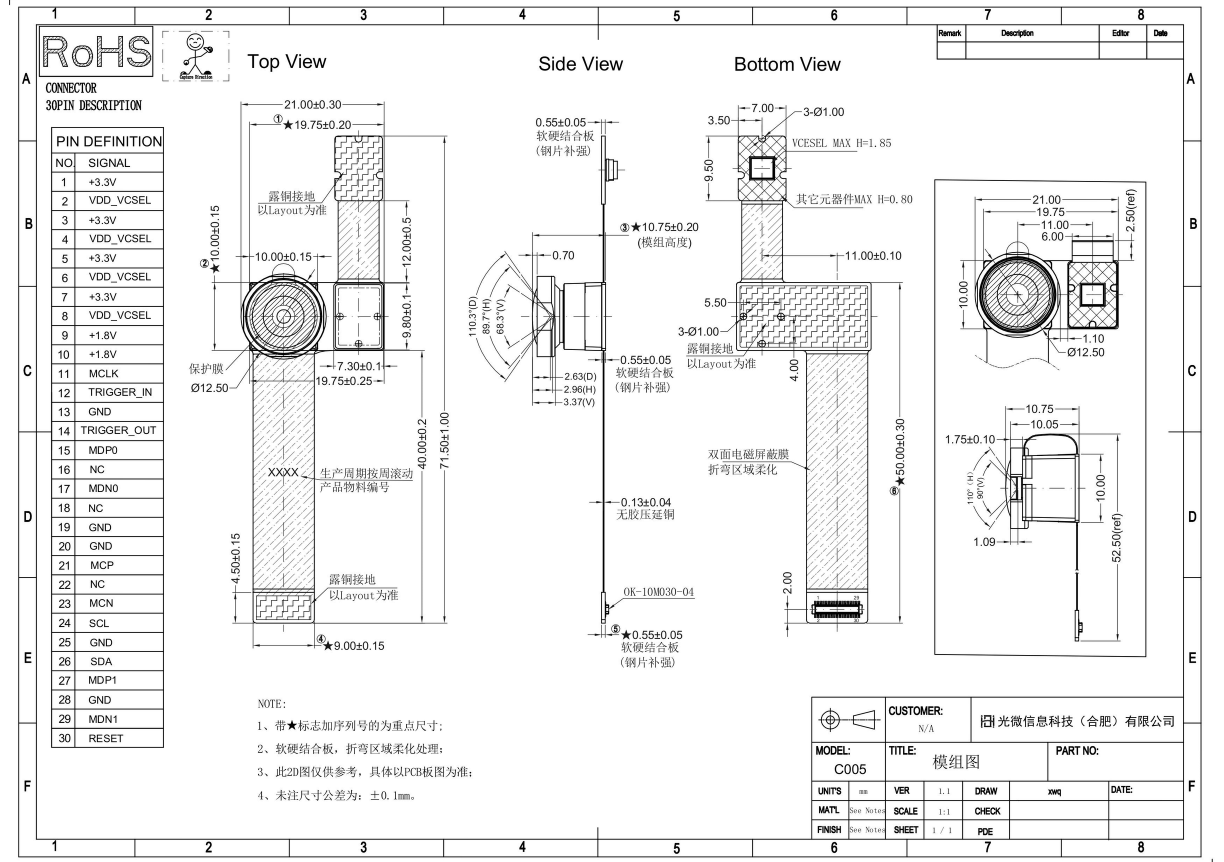

The C005 features a compact structure with dimensions of:
50mm × 21mm × 10.75mm
MIPI CSI-2 @1Gbps data interface
IIC control interface
1.8V / 3.3V / 3.6V operating voltage
The compact design allows manufacturers to integrate 3D vision capabilities into space-limited products without major hardware changes.
Product Name: C005 iToF 3D Camera Module
Technology: iToF (Indirect Time-of-Flight)
Resolution: 640×480
Measurement Range: 0.1m to 5m
Depth Accuracy: ±1%
Field of View: D 110.3°, H 89.7°, V 68.3°
Input Frequency: 24MHz
Modulation Frequency: 75MHz / 90MHz
Data Interface: MIPI CSI-2 @1Gbps
Control Interface: IIC
Operating Temperature: -20℃ to 65℃
Operating Voltage: 1.8V / 3.3V / 3.6V
Laser Safety: Class 1 (IEC60825-1:2014)
As robotics, artificial intelligence, and automation technologies continue to grow, accurate depth perception is becoming a key requirement for intelligent systems.
The C005 iToF 3D Camera Module combines high-resolution depth sensing, wide-angle detection, compact design, and efficient integration to provide a reliable 3D vision solution.
For companies developing robots, industrial equipment, smart devices, and machine vision systems, the C005 provides an effective way to add advanced depth sensing capabilities and improve product intelligence.
