Custom TFT Display PCBA for Beauty Devices and Massage Equipment

ElecSuppliers ApplicationsOct 11, 2026

As beauty devices and massage equipment become more intelligent, manufacturers are looking for display solutions that make product operation simpler and more intuitive. Users expect to adjust treatment modes, control intensity levels, set operating times, and monitor device status through clear visual interfaces rather than conventional buttons and indicator lights.

A well-designed TFT display PCBA can bring these functions together in a compact electronic interface. MCPCBA provides customizable TFT display module PCBA solutions for beauty equipment, massage chairs, and personal care electronics, helping manufacturers integrate color displays into their products while balancing functionality, hardware complexity, and development costs.

With support from MerrillChip's engineering and manufacturing capabilities, MCPCBA solutions can be adapted to different screen sizes, electrical interfaces, PCB layouts, and product structures.

TFT Display Solutions for Smart Beauty Equipment

Beauty devices often require an interface that presents multiple operating parameters in a limited space. Depending on the product, the screen may display treatment modes, intensity settings, session duration, operating status, and user instructions.

A TFT color display allows manufacturers to organize this information through graphical menus, icons, and visual indicators. When combined with a compatible touch panel, it can also support direct screen interaction for selecting modes and adjusting settings.

MCPCBA supports TFT display PCBA development using display controller platforms such as the LT7689 series. These solutions can be configured for 4.3-inch to 5-inch TFT displays, depending on project requirements.

The final configuration depends on the selected display panel, controller, touch interface, and host system. Manufacturers can evaluate the appropriate combination according to their product's interface requirements, enclosure dimensions, and intended functions.

Embedded Graphics Control for Simplified Development

Integrating a graphical display into a beauty device can increase the workload on the main microcontroller, particularly when the product needs to display images, animations, and multiple interface screens.

MCPCBA solutions using compatible serial TFT display controllers can simplify this process. Controllers in the LT7689 and related series support hardware graphics acceleration and display memory, allowing supported systems to handle graphical operations without requiring the host MCU to perform all graphics processing itself.

Through a UART serial interface, a compatible main controller can send commands to manage supported display functions. This architecture can reduce the complexity of display integration and help engineers concentrate on the beauty device's core functions.

For projects that do not require a complex operating system, a serial TFT display architecture may also provide a practical way to implement graphical interaction while maintaining a relatively straightforward embedded system design.

Actual capabilities depend on the selected controller, firmware, interface implementation, and display configuration.

Custom UI Design and Touch Interaction

The user interface is an important part of the overall product experience. A beauty device may need separate screens for mode selection, intensity adjustment, treatment timing, operating status, and safety prompts.

MCPCBA's associated UI-Editor and PC simulation tools support interface design and evaluation before final hardware integration. Engineers can arrange graphical elements, test screen layouts, and simulate supported interface behavior during the development process.

Depending on the product requirements, the display interface can be customized to support:

• Treatment mode selection and visual feedback

• Intensity and parameter adjustment

• Session timers and operating status

• Graphical icons and menu navigation

• Touchscreen interaction when compatible touch hardware is included

A customized interface allows manufacturers to align the display with their product's functions and industrial design rather than relying entirely on a standard, off-the-shelf screen interface.

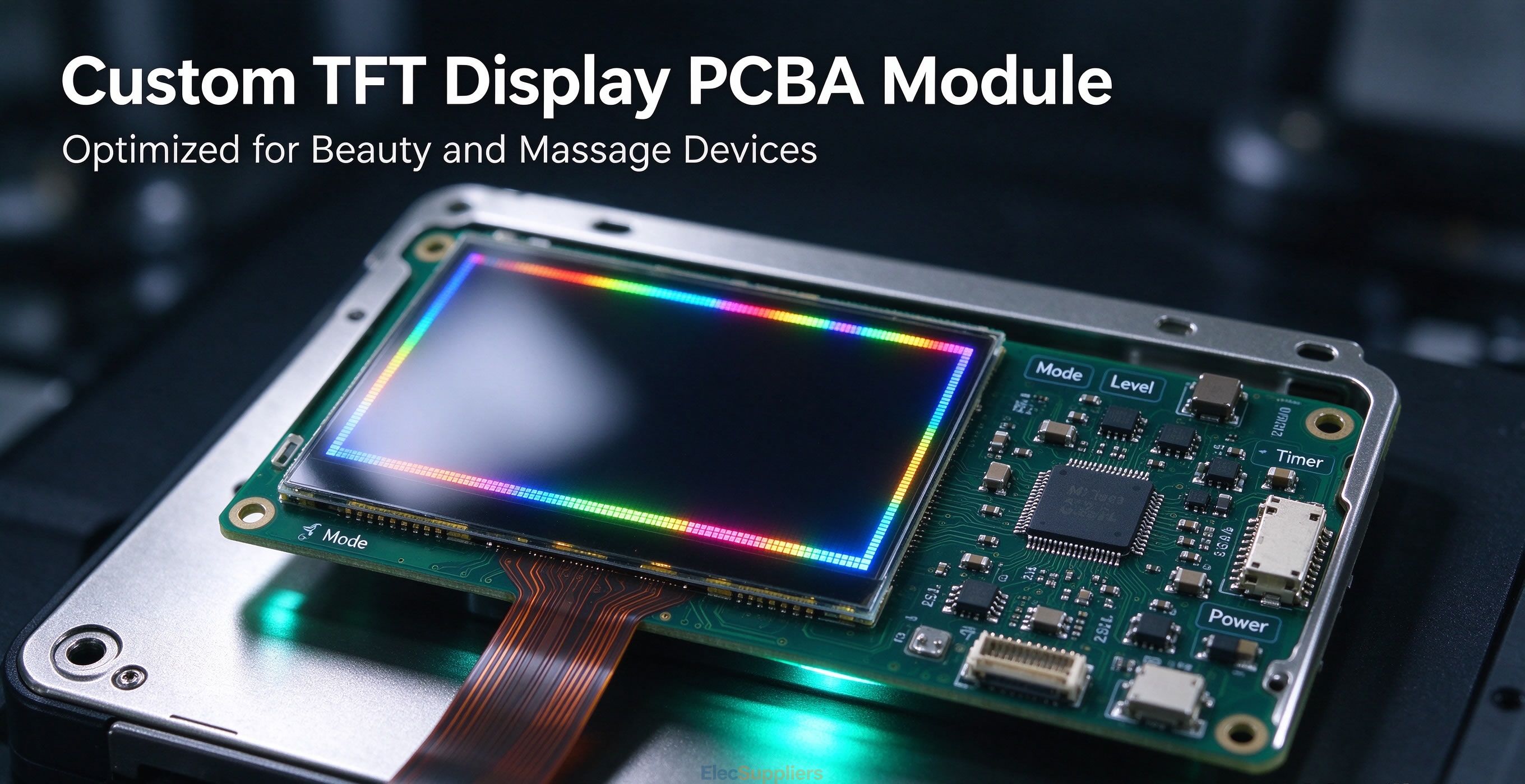

Compact TFT Display PCBA for Massage Equipment

Massage chairs and other electronic massage products require intuitive controls for operating modes, intensity levels, session duration, and other user settings.

A TFT display module can present these functions through a structured graphical interface, helping users understand their selections and monitor device operation. Depending on the product architecture, the display can communicate with the main controller to receive operating information and transmit user commands.

MCPCBA supports customized display PCBA development for projects requiring specific PCB dimensions, connector arrangements, screen sizes, and communication interfaces. This flexibility can help equipment manufacturers integrate the display electronics into different control panels and product enclosures.

For massage equipment intended for long-term use, the complete design should also consider electrical noise, power stability, thermal conditions, mechanical vibration, and the operating environment. These factors should be evaluated through application-specific engineering and validation.

Why Choose a Customized TFT Display PCBA?

Standard display modules may not always meet the mechanical, electrical, or interface requirements of a specialized beauty device or massage product. A customized TFT display PCBA provides greater flexibility when the product requires a particular screen size, connector position, PCB outline, or user interface.

MCPCBA supports display integration through several development capabilities.

Display controller selection: Matching compatible display controllers to the required graphics functions, communication interface, and screen configuration.

Customized PCB design: Adapting circuit layouts, board dimensions, and connectors to the host product.

TFT panel integration: Selecting display sizes and configurations according to the available installation space and interface requirements.

UI development support: Using development tools and simulation software to evaluate graphical interfaces before product integration.

Manufacturing support: Coordinating PCB assembly, display integration, and production according to project specifications.

This approach can help product teams reduce the need to develop every display-related function from scratch. It also gives manufacturers more options when balancing user interface requirements, product dimensions, engineering resources, and target production costs.

MCPCBA TFT Display PCBA for Beauty and Personal Care Products

As beauty devices and massage equipment continue to adopt more advanced electronic controls, TFT color displays offer manufacturers a practical way to improve product interaction and present operating information clearly.

MCPCBA provides customizable TFT display module PCBA solutions for beauty equipment, massage products, and other personal care electronics. By combining embedded display control, flexible hardware integration, and UI development support, these solutions help manufacturers develop interfaces suited to their specific applications.

For companies developing a new beauty device or upgrading an existing massage product, MCPCBA can support the evaluation of display controllers, TFT panels, PCB requirements, and system integration options.

Contact MerrillChip

For inquiries about MCPCBA TFT display PCBA solutions, customized display modules, or OEM and ODM development, contact MerrillChip to discuss your project requirements.
