TFT Display PCBA for Smart Home Appliances and IoT Devices

ElecSuppliers ApplicationsOct 11, 2026

Smart home appliances increasingly rely on visual interfaces to help users monitor device status, adjust settings, and interact with connected functions. From air purifiers and air conditioners to smart speakers and other IoT-enabled products, a TFT display can provide a clear interface for operating modes, temperature settings, air quality readings, timers, and system notifications.

MCPCBA provides TFT display module PCBA solutions for electronic product manufacturers that need to integrate display hardware into their own products. Depending on project requirements, development may cover controller selection, PCB design, display integration, embedded software adaptation, and manufacturing support.

TFT Display Solutions for Air Purifiers

Air purifiers often need to communicate operating status and environmental information through a compact control panel. A TFT display can present fan speed, operating mode, timer settings, filter reminders, and air quality information when compatible sensors and system software are available.

The display interface should be designed around the product's actual functions and the information users need to see at a glance. For compact appliances, screen size, readability, power consumption, and control layout are important factors when selecting a display module.

A custom TFT display PCBA can help align the display controller, main control board, and user interface with the appliance's hardware architecture.

TFT Display PCBA for Air Conditioners and Temperature Controllers

Air conditioners and temperature-control products require straightforward interfaces for temperature adjustment, operating modes, fan settings, and system status.

A TFT display can support graphical menus and visual feedback for these functions. Depending on the product design, it may be integrated into a wall-mounted controller, an appliance front panel, or a dedicated control terminal.

During development, engineers should evaluate display resolution, viewing angle, brightness, interface compatibility, and the available space inside the enclosure. The display and controller must also be compatible with the host MCU and the software responsible for controlling the appliance.

For products intended for long-term operation, the display module should be evaluated against the required operating temperature, power conditions, and expected service environment.

Smart Speaker Displays and Connected Home Interfaces

Some smart speakers and connected home devices use small displays to show time, playback information, connection status, notifications, or interactive settings.

A TFT display module can provide a visual interface alongside voice or physical controls. The appropriate solution depends on whether the product needs simple status graphics, animated elements, touch interaction, or more complex menus.

For embedded products with limited host processing resources, a suitable display controller may handle graphics-related operations and receive commands from the main MCU through a supported serial interface. This can reduce the host processor's display-processing workload, depending on the selected hardware and software implementation.

Touch functionality requires compatible touch hardware and firmware; it is not provided by the TFT panel or display controller alone in every configuration.

Serial TFT Controllers for Embedded Appliances

The display controller plays an important role in determining how the screen communicates with the main system and how graphical content is processed.

MCPCBA-related serial TFT solutions include controller models such as LT168A, LT168B, LT26BA, LT7686, and LT7689. Depending on the selected model and implementation, supported functions may include graphics acceleration, display memory, and serial communication with a host MCU.

This architecture can be useful for appliances that need a graphical interface without requiring the main controller to perform all graphics-processing tasks. Engineers should verify supported resolutions, panel interfaces, memory capacity, command sets, and peripheral requirements against the relevant controller documentation before selecting a design.

The software interface should also be planned around the product's actual operating logic, including menu navigation, device status updates, and user input.

Custom Display PCBA Design and Manufacturing

Integrating a TFT display into a smart appliance involves coordination across electronics, mechanics, and software. The display module must fit the enclosure, connect reliably to the host system, and support the interface required by the finished product.

Custom development may involve:

• Display controller and component selection

• PCB layout and hardware integration

• Display panel and connector compatibility

• Embedded software and user interface adaptation

• Mechanical structure and assembly coordination

• Prototype evaluation and production preparation

MerrillChip supports display-related engineering and manufacturing activities, including PCB design coordination, display bonding, and module assembly according to project requirements. Production testing and environmental validation should be defined according to the end product's intended use and applicable specifications.

How to Select a TFT Display Module for an IoT Product

Before selecting a display PCBA, manufacturers should establish the screen dimensions, resolution, interface type, operating voltage, power budget, viewing conditions, and required user interactions.

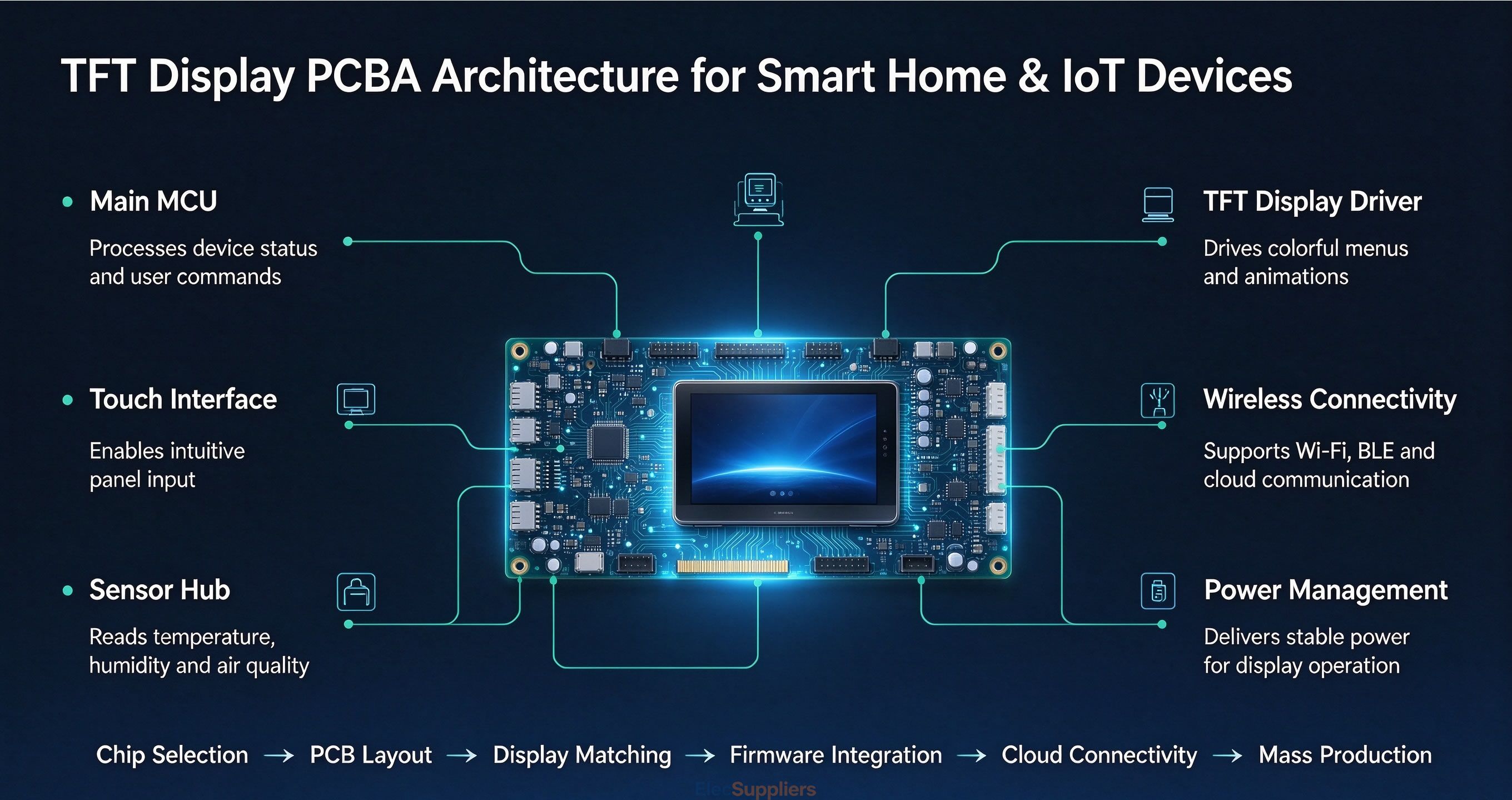

The host MCU, display controller, and firmware must be evaluated together to ensure that the complete system can deliver the intended interface. For connected appliances, network connectivity and cloud functions are generally handled by the wider product system rather than the display module alone.

Early coordination between hardware, software, and mechanical teams can help identify compatibility issues before tooling and mass production.

Custom TFT Display PCBA for Smart Home Product Manufacturers

Whether you are developing an air purifier, air conditioner, smart speaker, or another connected appliance, a custom TFT display PCBA can help integrate visual controls into your product design.

MCPCBA supports display-related development for electronic manufacturers seeking solutions tailored to their screen requirements, controller architecture, and product integration needs.
