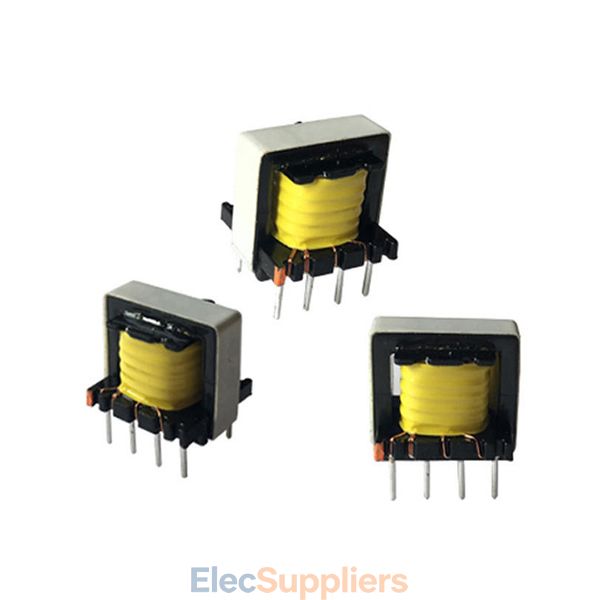

Product Details The EE12 high frequency transformer is a compact magnetic component designed for switching power supply applications such as mobile phone chargers, LED power supplies and other small electronic power adapters. Its EE12 core format provides a compact platform for high-frequency energy transfer and electrical isolation within a switching converter.Unlike a conventional 50Hz or 60Hz mains transformer, the EE12 transformer is intended to operate within a high-frequency switching circuit. A switching controller first converts the input power into a high-frequency waveform, which is then transferred through the transformer before being rectified and regulated on the output side. This high-frequency architecture allows the complete power supply to be significantly smaller than a traditional low-frequency transformer design.The compact EE12 structure is particularly relevant to mobile charging equipment. Small chargers require the power conversion stage to occupy limited PCB space while still providing the necessary isolation and energy-transfer function. The transformer therefore becomes one of the key magnetic components determining the overall size and performance of the switching power supply.LED power supplies are another important application. In an isolated LED driver, the high-frequency transformer can provide the required galvanic isolation between the mains-side switching circuit and the low-voltage output section. The final output characteristics depend on the complete converter topology, controller, winding configuration and feedback circuit rather than the transformer alone.The EE12 core is generally associated with lower-power switching applications where compact dimensions are more important than the high power capability required by larger industrial converters. This makes it appropriate for consumer electronics, compact adapters, charging equipment and small isolated power modules.Transformer winding design is an important part of the electrical performance. Primary and secondary turns, wire diameter, insulation system, winding arrangement and core material all influence the transformer's operating characteristics. The correct winding configuration must therefore be selected according to the switching frequency, input voltage range, output requirements and converter topology.In a flyback converter, for example, the transformer also functions as an energy-storage magnetic element during part of the switching cycle. In other converter architectures, it may primarily provide high-frequency energy transfer and isolation. The appropriate EE12 transformer specification therefore depends heavily on the circuit topology in which it will be installed.The transformer can be used in compact AC DC power supplies where a controller, switching transistor, rectifier, filter and feedback circuit are combined around the magnetic component. In such a design, the transformer works together with the rest of the power stage to achieve the required output voltage, current and efficiency.For mobile charger development, designers should pay particular attention to insulation and safety requirements because the transformer may form the isolation barrier between the mains input and the user-accessible low-voltage output. Creepage, clearance, insulation materials and winding construction should be evaluated according to the applicable product safety requirements.Thermal performance should also be considered. Although high-frequency operation enables a smaller transformer, copper losses, core losses and switching conditions still generate heat. The actual temperature rise depends on frequency, flux density, load, winding resistance, core material and the thermal environment inside the charger enclosure.The EE12 format is also useful when PCB space is restricted. Its compact construction can help power-supply designers reduce the footprint of the magnetic section while maintaining the isolated conversion architecture required by many consumer electronic products.The EE12 high frequency transformer is therefore a specialized switching-power magnetic component rather than a general-purpose low-frequency power transformer. Its combination of compact EE-core construction and high-frequency operation makes it particularly suitable for mobile phone chargers, LED power supplies, small AC DC adapters and other compact isolated switching power supplies.
