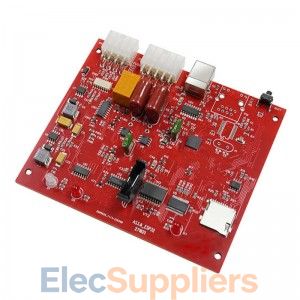

Security Camera PCB PCBA Assembly for Smart Home Electronics

Security cameras combine image capture, processing, connectivity, power management and user control within a relatively compact electronic product. The PCB assembly therefore has to accommodate several electronic functions while fitting into the mechanical structure of the camera. This custom security camera PCBA is designed for manufacturers developing camera and smart home electronics that require an application-specific circuit board.

The board specification uses a 6-layer FR-4 construction with a 1.2 mm PCB thickness, ENIG surface finish and tented vias. The multilayer structure provides additional routing space for densely arranged circuits, making it suitable for electronic products where components and signal connections need to be organized within a limited PCB area.

For camera products, the PCB can be positioned around the requirements of the complete device rather than treated as an independent board. Component placement can be coordinated with the camera module, housing, power section, communication circuitry and other internal assemblies. This is important for compact security cameras where the available internal space is closely related to the final product dimensions.

The manufacturing specification supports small electronic components down to 01005 and package types including Flip-Chip, QFP, BGA and POP. SMT positioning accuracy is specified at 20 μm, allowing the assembly process to accommodate high-density component layouts used in compact electronic products.

The PCB is also suitable for smart home equipment beyond cameras. Similar circuit architectures can be used in connected appliances and home automation devices where sensors, communication functions, control circuits and user interfaces need to operate together. The board configuration can be adapted to the electrical and mechanical requirements of the target product.

For security camera manufacturers, PCB assembly can also be developed around the product's image-processing and connectivity architecture. Wireless communication, image-related electronics and other functions can be integrated according to the customer's circuit design instead of relying on a standard board configuration.

The manufacturing process supports several inspection and testing methods, including ICT, flying probe testing, burn-in, functional testing and temperature cycling. The appropriate test combination can be selected according to the product design and production requirements.

The PCB fabrication capability also supports fine-pitch requirements, with the page specifying a minimum line width and spacing of 0.065/0.065 mm and a minimum BGA pad size of 0.2 mm for special requirements. This gives the design greater flexibility when a compact product requires higher component density.

For OEM and custom electronics projects, the finished PCBA can be developed around the customer's PCB files, component requirements, board dimensions and assembly specifications. This makes the solution suitable for security camera manufacturers, smart home product developers and electronic appliance manufacturers looking for a customized production board.

Product Features

• Custom PCB and PCBA assembly for security cameras

• 6-layer FR-4 PCB construction

• 1.2 mm PCB thickness

• ENIG surface finish

• Tented vias

• Supports 01005 components

• Supports Flip-Chip, QFP, BGA and POP packages

• SMT positioning accuracy of 20 μm

• Suitable for compact camera electronics

• Suitable for smart home and IoT products

• Supports ICT, flying probe, burn-in and functional testing

• Fine-line PCB manufacturing capability

• Customized according to customer product requirements

Technical Specifications

• Product Type: Security Camera PCB PCBA

• PCB Material: FR-4

• Layer Count: 6 layers

• PCB Thickness: 1.2 mm

• Surface Finish: ENIG

• Via Process: Tenting Vias

• Minimum Trace / Space: 0.102 mm / 0.1 mm standard specification

• Fine-Line Capability: 0.065 mm / 0.065 mm

• Minimum Drilled Hole: 0.1 mm

• Minimum BGA Pad: 0.2 mm

• SMT Position Accuracy: 20 μm

• Component Size: 0.4 × 0.2 mm (01005) to 130 × 79 mm

• Supported Packages: Flip-Chip, QFP, BGA, POP

• Maximum Component Height: 25 mm

• Maximum PCB Size: 680 × 500 mm

• PCB Thickness Capability: 0.3–6 mm

• Testing: ICT, Flying Probe, Burn-in, Functional Test, Temperature Cycling
