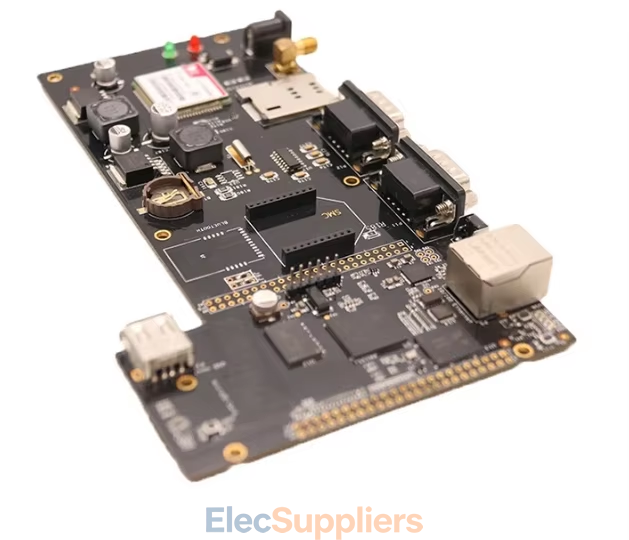

Product Details The Rockchip RV1126B-P is designed for intelligent camera applications that require image processing, AI capabilities and a compact hardware platform. A custom PCBA based on the RV1126B-P can be used for IP cameras, smart security cameras, video doorbells, smart home devices and other embedded vision products.An RV1126B-P camera PCBA can integrate the processor with DDR memory, eMMC storage and MIPI CSI camera interfaces on a compact multilayer PCB. The board design can be adapted to different camera structures and enclosure sizes while providing the required connections between the processor, memory, image sensor and other electronic devices.For camera products with limited internal space, HDI PCB technology can provide more routing space within a compact board structure. The PCBA can be designed with 4 to 8 PCB layers, depending on the circuit complexity and interface requirements. BGA components can also be used for the main processor and other high-density devices.The PCB assembly process supports various component packages, including BGA, QFN and small passive components down to 0201 size. Different PCB materials and surface finishes can be selected according to the electrical, mechanical and production requirements of the camera product. Options may include FR-4, high-TG materials, Rogers, aluminum and flexible PCB materials.The RV1126B-P camera board can support DDR3 or DDR4 memory configurations and eMMC storage according to the product design. Storage capacity can be configured up to 128 GB for applications that require local data storage. The memory and storage configuration can be adjusted based on the camera's operating system, software requirements and target application.MIPI CSI provides the camera interface between the processor and image sensor. The PCB design can be developed around the selected image sensor and required camera resolution. Image sensors from manufacturers such as Sony and OmniVision can be incorporated according to the project requirements.The camera PCBA can also integrate communication interfaces such as Ethernet and Wi-Fi. PoE functionality can be considered for IP camera designs that require both network communication and power through an Ethernet connection. The exact interface configuration depends on the final product architecture.This type of PCBA can be used in AI security cameras, IP surveillance cameras, smart home cameras, video doorbells, baby monitors and other intelligent imaging equipment. It can also be adapted for embedded vision applications where local image processing is required.During custom camera PCBA development, the board can be designed around the required processor, camera sensor, memory, storage, communication interfaces and mechanical dimensions. PCB fabrication, component sourcing, SMT assembly and functional testing can be integrated into the production process.For RV1126B-P based camera projects, the PCBA design can be adjusted for prototype development as well as volume production. Engineering considerations such as power distribution, high-speed signal routing, DDR layout and MIPI signal integrity can be addressed during PCB design and assembly to support stable camera operation.
