W25Q64JVSSIQ and W25Q64FVSSIG are 64M-bit serial Flash memory devices from Winbond's W25Q64 product family. Both are designed for embedded systems that require non-volatile memory for firmware, configuration data, parameters, boot code, and other application data.
Although the two part numbers have a similar naming structure and the same 64M-bit memory capacity, they belong to different generations of the W25Q64 family. The differences in device generation, operating specifications, performance features, package options, and ordering information should therefore be considered when selecting between them.
The two devices share several important characteristics.
Both provide 64M-bit serial Flash memory and are designed for SPI-based embedded applications.
The main comparison points include:
Flash capacity
SPI interface
Operating voltage
Read performance
Programming performance
Package
Erase and program functions
Power consumption
Temperature grade
Device generation
For an existing PCB design, the complete part number should be checked rather than assuming that every W25Q64 device is interchangeable.
Both W25Q64JVSSIQ and W25Q64FVSSIG belong to the 64M-bit Flash memory class.
64M-bit corresponds to 8MB of storage capacity.
This capacity can be used for:
Firmware
Bootloaders
Configuration parameters
Device settings
Fonts and graphics
Sensor data
Calibration information
Application data
The memory capacity itself is therefore not the primary reason to choose one device over the other.
Instead, engineers should examine the electrical characteristics, command set, performance, package, and compatibility with the existing system.

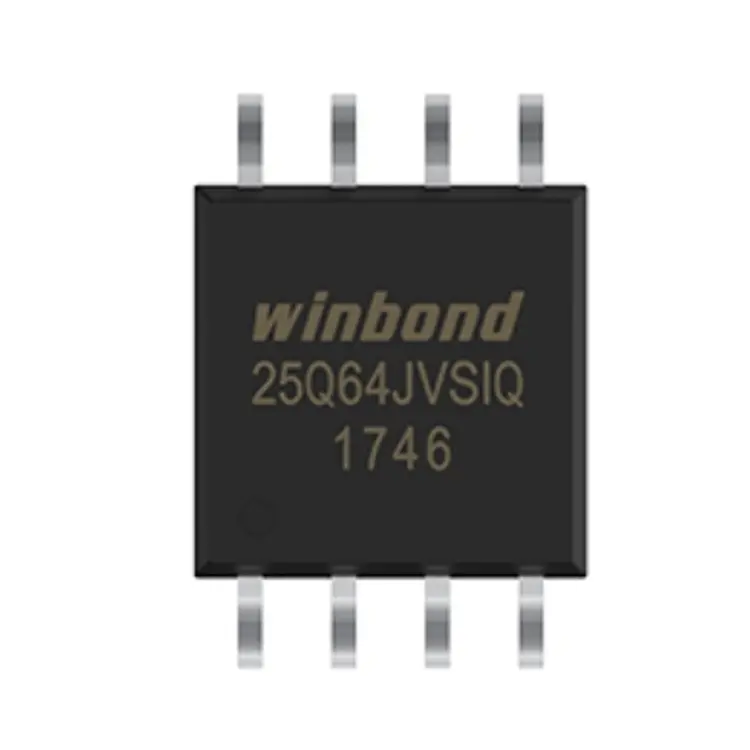

W25Q64JVSSIQ belongs to the W25Q64JV generation of serial Flash memory devices.
The W25Q64JV family is designed for high-performance embedded storage applications and supports SPI-based communication as well as higher-speed serial interfaces depending on the operating mode.
This makes the device suitable for microcontroller and embedded processor systems that need external non-volatile memory.
Typical applications include:
Embedded controllers
Industrial equipment
IoT devices
Consumer electronics
Display systems
Networking equipment
Storage for firmware and configuration data

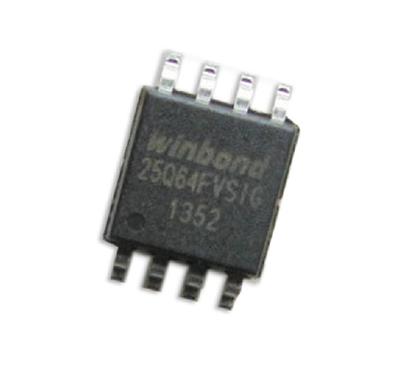

W25Q64FVSSIG belongs to the W25Q64FV generation.
The W25Q64FV series is also a 64M-bit serial Flash family designed for embedded applications.
Like other W25Q devices, it can be used to store program code, configuration information, lookup tables, graphics, and other data that needs to remain available when system power is removed.
The FV and JV designations are important because they identify different device generations and specifications.
Therefore, an engineer should compare the actual datasheets when considering a migration from W25Q64FVSSIG to W25Q64JVSSIQ or the reverse.
Both devices are serial Flash memories designed for efficient communication with embedded controllers.
SPI Flash is widely used because it requires relatively few pins while providing substantially more external storage than can be integrated directly into many microcontrollers.
Typical connections include:
Chip Select
Serial Clock
Serial Data Input
Serial Data Output
Depending on the operating mode and device configuration, additional data lines can be used for faster read operations.
For an existing PCB, engineers should verify the exact pin assignment and supported interface modes before changing the Flash device.
A 64M-bit SPI Flash device provides approximately 8MB of addressable storage.
The memory is organized into sectors and blocks that can be erased and programmed according to the device command set.
This organization allows embedded firmware to manage Flash storage efficiently.
Common uses include storing:
Boot firmware
Application firmware
Device parameters
Calibration data
Fonts
Images
Lookup tables
System configuration
When replacing one W25Q64 device with another, the software should be reviewed to ensure that the erase commands, status registers, addressing modes, and protection functions are handled correctly.
Performance is an important consideration when selecting external Flash memory.
The maximum read frequency, supported read modes, program time, erase time, and interface configuration can affect system startup and data access performance.
W25Q64JV and W25Q64FV devices belong to different product generations, so engineers should not assume that their maximum performance specifications are identical.
Applications that execute code directly from external Flash or frequently access large amounts of data should pay particular attention to the read-performance requirements.
The package is another important part of the complete part number.
The suffixes in W25Q64JVSSIQ and W25Q64FVSSIG contain package and ordering information.
For an existing PCB, engineers should verify:
Package type
Package dimensions
Pin numbering
Pin assignment
Power connections
Ground connections
Chip-select connection
SPI signal routing
Status and protection functions
Even when two Flash devices have the same memory capacity and similar pin functions, the package and ordering specifications should be verified before production replacement.
SPI Flash devices are sensitive to supply voltage and signal-level compatibility.
When comparing W25Q64JVSSIQ and W25Q64FVSSIG, engineers should verify the specified operating voltage range and ensure that the MCU or processor uses compatible logic levels.
The complete power design should also be reviewed, including:
VCC
Ground
Decoupling capacitors
I/O voltage
Power-up sequence
Standby behavior
For battery-powered and low-power embedded products, standby and active power consumption can also influence device selection.
A replacement may be possible in some designs, but the two part numbers should not automatically be treated as identical devices.
Before replacing W25Q64FVSSIG with W25Q64JVSSIQ, engineers should compare the datasheets and verify:
Memory capacity
Command compatibility
Status register behavior
Addressing
Erase commands
Program commands
Read commands
SPI timing
Voltage requirements
Software driver compatibility
If the existing firmware communicates with the Flash using standard commands, migration may be relatively straightforward. However, device-specific features and register behavior still need to be checked.
Both devices are suitable for applications requiring external non-volatile Flash storage.
W25Q64JVSSIQ can be considered for newer embedded designs that require a W25Q64-series device with the specifications associated with the JV generation.
W25Q64FVSSIG can be found in existing designs based on the FV generation and may remain relevant for legacy systems and established hardware platforms.
For new projects, engineers should select the device according to current technical requirements and availability.
For existing products, maintaining software and PCB compatibility can be more important than simply selecting the newest device generation.
W25Q64-series Flash memory can be used across many electronic products.
Microcontroller systems
Industrial controllers
Smart home equipment
Display controllers
Automotive electronics
Embedded Linux systems
Firmware storage
The 8MB capacity makes this memory class useful when the internal Flash of the main MCU is insufficient for the complete application.
When evaluating W25Q64JVSSIQ as an alternative to W25Q64FVSSIG, engineers should perform a complete device comparison.
The most important items include memory capacity, voltage, interface compatibility, package, pin assignment, read modes, erase and program commands, timing specifications, temperature range, and software support.
The PCB should also be reviewed to make sure that the selected package can be installed without creating mechanical or routing problems.
After hardware verification, the Flash driver should be tested with the actual application firmware.
W25Q64JVSSIQ and W25Q64FVSSIG are both 64M-bit SPI Flash devices, providing approximately 8MB of non-volatile storage.
The most important distinction is that they belong to different W25Q64 product generations.
For engineers comparing the two part numbers, memory capacity alone is not enough to determine compatibility. Device specifications, command behavior, interface timing, package, voltage requirements, temperature grade, and software implementation should all be reviewed.
For an existing design, W25Q64JVSSIQ may be evaluated as a potential alternative to W25Q64FVSSIG only after detailed hardware and firmware verification.
The final component selection should always be based on the applicable technical documentation and the requirements of the target application.
