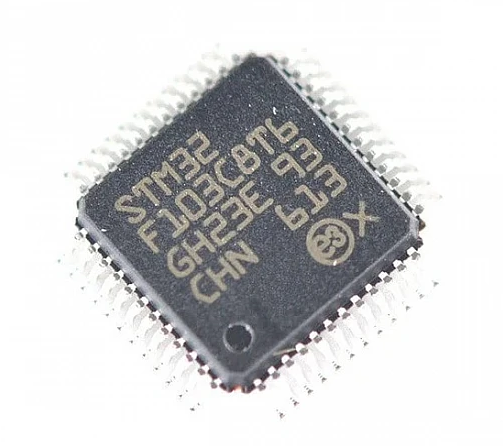

STM32F103C8T6 and STM32F103CBT6 are two closely related microcontroller part numbers in the STM32F103 family. Because their model numbers and core features are similar, they are often compared when engineers select an MCU for embedded designs.
Both devices are based on the ARM Cortex-M3 architecture and operate at up to 72MHz. The main difference to consider is Flash memory capacity, along with the specific package, memory configuration, and application requirements.
STM32F103C8T6 and STM32F103CBT6 belong to different memory-density versions of the STM32F103 family.
STM32F103C8T6 is commonly associated with up to 64KB of Flash memory, while STM32F103CBT6 provides up to 128KB of Flash memory.
This difference can be important when an embedded application requires additional space for firmware, communication stacks, bootloaders, libraries, or future software expansion.
Flash memory is one of the most important differences between STM32F103C8T6 and STM32F103CBT6.
STM32F103C8T6:
64KB Flash
STM32F103CBT6:
128KB Flash
For a simple embedded application, 64KB may be sufficient. However, applications with larger firmware images may benefit from the additional Flash capacity available in STM32F103CBT6.
Additional memory can be useful for products containing communication protocols, bootloaders, graphical functions, multiple application modules, or more complex control algorithms.
When selecting between these two MCUs, engineers should check the actual compiled firmware size rather than choosing only according to the nominal device family.
Both STM32F103C8T6 and STM32F103CBT6 use the ARM Cortex-M3 architecture with a maximum CPU frequency of 72MHz.
The Cortex-M3 platform provides a widely used architecture for embedded control applications and supports real-time processing, peripheral control, communication, and sensor data processing.
This makes the STM32F103 family suitable for industrial controllers, consumer electronics, communication equipment, sensor systems, and embedded control boards.
In addition to Flash memory, SRAM should also be considered when comparing STM32F103C8T6 and STM32F103CBT6.
SRAM is used for variables, buffers, stack space, communication data, and runtime application processing.
For an existing design, engineers should examine actual SRAM utilization as well as Flash usage.
A project may have sufficient Flash memory but still experience memory limitations because of large buffers, communication protocols, graphics processing, or complex application software.
STM32F103C8T6 and STM32F103CBT6 share many of the peripheral functions associated with the STM32F103 platform.
Depending on the exact device configuration, typical peripherals include:
ADC
Timers
PWM
SPI
I2C
USART
USB
CAN
GPIO
DMA
These peripherals allow the MCU to communicate with sensors, displays, motors, memory devices, communication modules, and other external hardware.
For an existing PCB design, engineers should verify the exact peripheral availability and pin mapping of the selected part number.
The complete part number should be considered when comparing STM32F103C8T6 and STM32F103CBT6.
Package and pin configuration can directly affect PCB compatibility.
Before changing from one MCU to another, engineers should check:
Package type
Pin count
Pin assignment
Power pins
Ground pins
ADC inputs
Communication interfaces
Timer outputs
USB pins
CAN pins
Debug interface
Even when two devices belong to the same MCU family, package and pin differences should be verified before assuming that an existing PCB can be reused.
STM32F103C8T6 can be suitable for embedded applications where the firmware requirements fit within its available Flash capacity.
Typical applications include:
Industrial control boards
Sensor interfaces
Motor control
Consumer electronics
Embedded control systems
Communication equipment
USB peripherals
Automation equipment
For applications with relatively compact firmware, STM32F103C8T6 provides a practical Cortex-M3 MCU platform with multiple integrated peripherals.
STM32F103CBT6 can be considered when an application requires more Flash memory within the STM32F103 family.
The larger Flash capacity provides additional space for firmware expansion and future software updates.
This can be useful for products that may later add communication protocols, diagnostic functions, control algorithms, user interfaces, or other software features.
For engineering teams developing products with long software lifecycles, additional Flash capacity can provide more design flexibility.
When comparing the two devices for an existing product, the first step is to determine how much Flash and SRAM the current firmware actually uses.
If the firmware is comfortably within the Flash capacity of STM32F103C8T6, the smaller memory configuration may be sufficient.
If the firmware is approaching its memory limit or future firmware updates are expected to increase program size, STM32F103CBT6 may provide a more suitable memory configuration.
The package, pin assignment, peripherals, electrical characteristics, and operating conditions should also be checked before making a hardware change.
In some designs, moving from STM32F103C8T6 to STM32F103CBT6 may be practical because both devices belong to the same STM32F103 family.
However, engineers should not assume that they are automatically interchangeable.
A replacement evaluation should include:
Flash memory
SRAM
Package
Peripheral availability
Power requirements
Operating temperature
Clock configuration
Programming interface
Firmware compatibility
The existing PCB and firmware should be verified before production use.
Neither device is universally better. The appropriate choice depends on the requirements of the application.
STM32F103C8T6 can be suitable for designs where 64KB Flash is sufficient and the firmware has relatively modest memory requirements.
STM32F103CBT6 can be more appropriate when the application requires up to 128KB Flash or additional space for future firmware development.
Processing performance alone does not determine the choice because both devices belong to the same STM32F103 family and use the same general Cortex-M3 platform.
The key distinction between the two part numbers is their Flash memory configuration.
STM32F103C8T6 is generally associated with 64KB Flash, while STM32F103CBT6 provides 128KB Flash.
Both can be considered for embedded control, industrial electronics, communication equipment, automation systems, and other MCU-based applications.
For a new design, engineers should select the device based on required memory, peripherals, package, availability, and application requirements.
For an existing design, the actual firmware size, PCB layout, pin configuration, and system requirements should be reviewed before changing the MCU.
