24LC256 and AT24C256 are popular 256-Kbit I2C serial EEPROM devices used for storing configuration data, calibration values, device parameters, logs, and other nonvolatile information in embedded systems.
For engineers searching for 24LC256 vs AT24C256, the two devices have a similar memory organization and use a two-wire I2C-compatible interface. However, the exact electrical specifications, operating voltage, clock capability, package options, and device variant should be checked before treating one as a replacement for the other.
Both devices are based on a 256-Kbit EEPROM architecture.

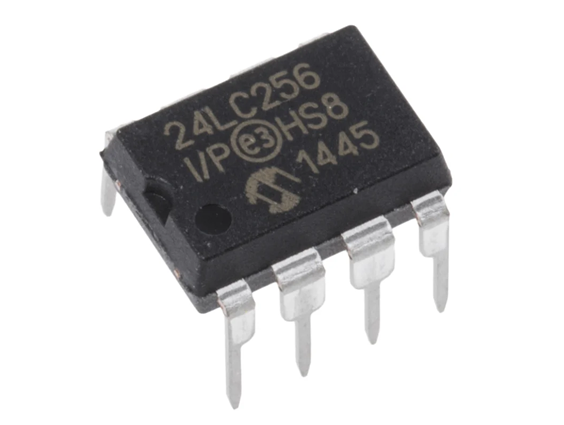

The 24LC256 is organized as 32K × 8, providing 32,768 bytes of nonvolatile memory. Microchip lists a 256-Kbit density, 64-byte page size, and up to 1,000,000 erase/write cycles.
The AT24C256C is also organized as 32K × 8, with 256 Kbit of EEPROM memory. Its documentation specifies 512 pages of 64 bytes each.
Therefore, from a basic storage-capacity perspective, 24LC256 and AT24C256 are closely matched.
Both 24LC256 and AT24C256 use an I2C-compatible two-wire serial interface.
The interface uses:
SDA for serial data
SCL for serial clock
VCC for power
VSS for ground
The devices also provide hardware write protection and device address inputs for configuring the I2C address.
The 24LC256 supports 100-kHz and 400-kHz clock operation. Microchip specifies a maximum clock frequency of 400 kHz for the current 24LC256 product.
The AT24C256C supports both 400-kHz and 1-MHz clock operation.
This is one of the important differences to consider when evaluating the two devices.
The operating voltage range depends on the exact 24LC256 family member and ordering code.
Microchip currently specifies the 24LC256 with an operating voltage range of 2.5 V to 5.5 V and a maximum clock frequency of 400 kHz.
This makes 24LC256 suitable for many embedded systems operating from conventional 3.3-V or 5-V power rails.
When selecting a replacement, engineers should verify the supply voltage of the existing EEPROM circuit and confirm that the replacement supports the same operating conditions.
The AT24C256C provides a broader supply-voltage range.
Microchip specifies 1.7 V to 5.5 V for the AT24C256C. The device supports operation at 400 kHz and 1 MHz and is available in several compact package options.
This wider voltage range can be useful in embedded products using lower-voltage MCU systems.
However, a wider operating range does not automatically make AT24C256C a drop-in replacement for every 24LC256 design. The complete electrical characteristics and package must still be checked.
Page writing is an important specification for EEPROM applications because it affects how much data can be written during a single write operation.
The 24LC256 provides a 64-byte page write buffer, with a maximum page write time of 5 ms according to Microchip's product information.
The AT24C256C also uses 64-byte pages and specifies a maximum self-timed erase/write cycle of 5 ms.
The similar page structure makes the two devices suitable for applications that frequently store small blocks of configuration or control data.
EEPROM endurance is particularly important in products that repeatedly update stored information.
Microchip specifies more than 1 million erase/write cycles for the relevant 24LC256 family information.
The AT24C256C is also specified for more than 1 million erase/write cycles.
Actual system endurance will depend on how the firmware distributes writes across the memory and how frequently individual locations are updated.
For applications with frequent data logging, engineers should consider wear distribution and write-management techniques in addition to the component's rated endurance.
Package selection can become important when replacing an EEPROM on an existing PCB.
The 24LC256 family is available in multiple package formats, including 8-lead PDIP, SOIC, TSSOP, DFN, TDFN, MSOP and CSP options depending on the ordering code.
The AT24C256C is also available in multiple compact packages, including 8-lead SOIC, 8-lead TSSOP, 8-pad UDFN and 8-ball VFBGA packages.
Therefore, engineers comparing 24LC256 and AT24C256 should identify the complete ordering code rather than comparing only the generic family names.
Both devices support hardware addressing through address pins.
The 24LC256 uses A0, A1 and A2 device-address inputs, allowing multiple EEPROM devices to share the same I2C bus. Microchip specifies that up to eight devices can be cascaded on the same bus.
The AT24C256C documentation also defines A0, A1 and A2 device address inputs and describes system configurations using multiple two-wire serial EEPROM devices.
This makes both devices suitable for systems requiring several EEPROMs on one I2C bus.
Hardware write protection is another common feature.
The 24LC256 provides a hardware write-protect pin that can be used to protect the stored data from unintended write operations.
AT24C256C also includes a hardware write-protect pin. Its documentation provides detailed behavior for write protection of the EEPROM array.
When replacing an EEPROM, the WP pin should therefore be checked carefully in the PCB schematic and firmware design.
Clock frequency can be an important difference between the two devices.
The current Microchip 24LC256 product information specifies a maximum clock frequency of 400 kHz.
The AT24C256C supports 400 kHz and 1 MHz operation.
If an existing system uses a 400-kHz I2C bus, both devices can be evaluated within that operating condition.
If the system requires a 1-MHz I2C clock, the exact 24LC256 variant must be checked because the standard 24LC256 specification does not provide the same 1-MHz capability listed for AT24C256C.
Nonvolatile data retention is another consideration for EEPROM applications.
Microchip lists long-term data retention for both families. The 24LC256 product information specifies 200 years of data retention, while AT24C256C documentation specifies more than 100 years.
The applicable retention specification should be evaluated together with temperature and operating conditions for the actual application.
The 24LC256 can be used in a wide range of embedded applications requiring nonvolatile memory.
Typical applications include:
Configuration storage
Calibration data
Product identification
Sensor parameters
System settings
Industrial controllers
Embedded systems
Data acquisition equipment
Communication equipment
The I2C interface allows the EEPROM to communicate with an MCU using only two signal lines.
AT24C256C is also designed for nonvolatile data storage in consumer, industrial, and automotive applications. Microchip specifically describes the device as a 256-Kbit I2C-compatible serial EEPROM.
Potential applications include:
Industrial electronics
Embedded controllers
Automotive electronics
Smart devices
Measurement equipment
Configuration memory
Calibration storage
Parameter storage
The wider voltage range and 1-MHz interface capability of AT24C256C can be useful in designs with more demanding interface requirements.
In some applications, AT24C256 can be considered as an alternative to 24LC256 because both devices provide 256-Kbit EEPROM memory and an I2C-compatible interface.
However, replacement should not be based only on memory capacity.
Engineers should compare:
Memory organization
I2C address format
Operating voltage
I2C clock frequency
Page size
Write-cycle timing
Endurance
Data retention
WP behavior
Package
Pin assignment
Operating temperature
The exact ordering codes should be checked before making a PCB-level substitution.
The same principle applies in the opposite direction.
A 24LC256 may be suitable for an application currently using an AT24C256 if the system operates within the 24LC256 electrical specifications.
However, a design using AT24C256C at 1.7 V or at a 1-MHz I2C clock should not automatically be migrated to a standard 24LC256 because the current 24LC256 specifications list a 2.5-V minimum supply and 400-kHz maximum clock.
This makes supply voltage and bus speed two of the most important checks during replacement evaluation.
For a typical 3.3-V embedded system operating an I2C bus at 100 kHz or 400 kHz, both devices may be technically relevant depending on the exact ordering code and package.
For a lower-voltage design, AT24C256C provides an advantage because its specified supply range extends down to 1.7 V.
For a system requiring 1-MHz I2C operation, AT24C256C is also more directly suited based on its published specifications.
For a conventional 3.3-V or 5-V design operating at 400 kHz or below, 24LC256 remains a practical EEPROM option.
The two EEPROM families have several important similarities:
Both provide 256-Kbit nonvolatile memory.
Both use an I2C-compatible two-wire interface.
Both use 64-byte page writes.
Both provide hardware write protection.
Both support multiple devices on the same I2C bus.
Both are designed for embedded nonvolatile data storage.
The major differences to review are the operating-voltage range, maximum I2C clock frequency, package availability, current specifications, and exact temperature-grade options.
The best device depends on the requirements of the target design.
If the system uses a standard 3.3-V or 5-V supply and a 400-kHz-or-lower I2C interface, 24LC256 can be evaluated as a suitable 256-Kbit EEPROM.
If the design requires operation down to 1.7 V or needs 1-MHz I2C operation, AT24C256C provides specifications that better match those requirements.
Package and pin compatibility should also be checked before replacing an EEPROM already installed on a PCB.
24LC256 and AT24C256 are closely related 256-Kbit I2C EEPROM solutions, but they should not automatically be considered identical components.
Their memory capacity, page size, I2C interface, write endurance, and general application areas are similar. However, differences in supply voltage and clock frequency can become important in a real embedded design.
For engineers evaluating 24LC256 vs AT24C256, the most reliable approach is to compare the exact part numbers against the system's voltage, I2C speed, memory requirements, package, temperature range, and PCB pinout.
This device-level comparison helps determine whether the two EEPROMs can be used interchangeably in a specific product rather than relying only on the similar 256-Kbit part numbers.
