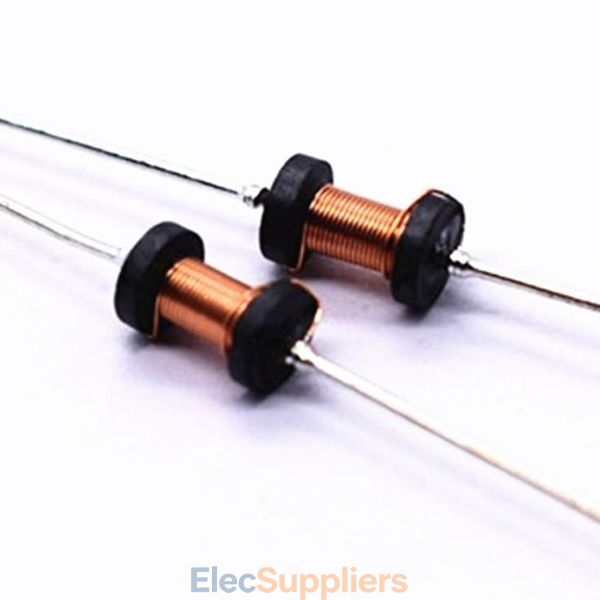

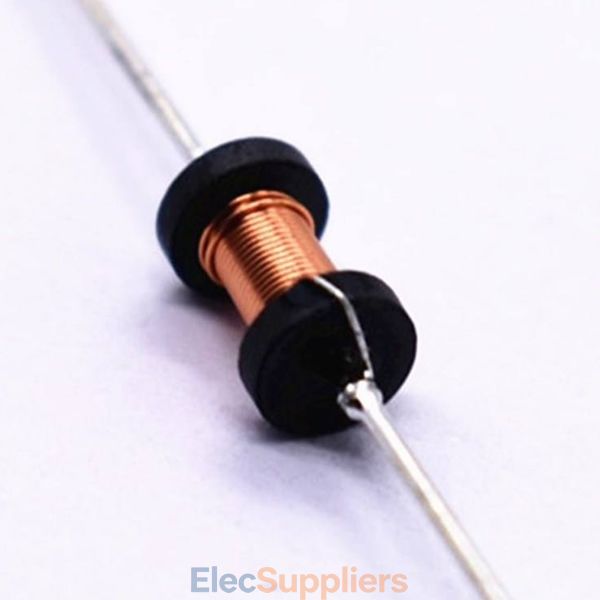

Reliable Magnetic Ferrite Core Axial Leaded Wire Wound Inductor

The Reliable Magnetic Ferrite Core Axial Leaded Wire Wound Inductor is a fixed inductor designed for electronic circuits requiring inductive filtering, current smoothing and energy storage. Its axial leaded construction allows the component to be mounted directly through holes in a printed circuit board, making it suitable for conventional through-hole electronic assembly.

The component uses a wire-wound structure built around a magnetic ferrite core. Insulated conductive wire is wound around the magnetic core to create the required inductive element. Ferrite materials are commonly used in wire-wound inductors because their magnetic properties can increase inductance while maintaining a practical component size.

The axial configuration places the electrical leads at opposite ends of the component. This arrangement resembles the physical form of an axial resistor and provides flexibility for PCB layouts where the component needs to bridge two mounting points along a straight path.

During circuit operation, the inductor stores energy in its magnetic field and opposes rapid changes in current. This behavior makes fixed inductors useful in power filtering and signal-conditioning circuits. When combined with capacitors and other passive devices, the inductor can form filtering networks that help reduce unwanted ripple and high-frequency electrical noise.

The ferrite core and wire-wound construction can provide a practical balance between inductance, current handling and component size. Actual electrical performance depends on the selected inductance value, winding structure, core material, wire diameter and other design parameters.

This type of axial inductor can be used in DC DC converter circuits where inductive energy storage and current smoothing are required. It can also be incorporated into power supply filtering networks to help smooth current and reduce unwanted fluctuations.

The component is also suitable for general electronic filtering applications. Depending on the selected electrical specification, axial ferrite inductors can be used in signal circuits, power input filtering, LED driver circuits, industrial control equipment and communication-related electronic systems.

Through-hole mounting provides a mechanically straightforward connection to the PCB. The leaded construction can be advantageous for circuit boards designed around traditional assembly processes, repairable equipment and applications where a component with flexible lead placement is preferred.

When selecting an axial ferrite core inductor, engineers should evaluate inductance, tolerance, rated current, saturation current, DC resistance, operating frequency, self-resonant characteristics and temperature range. These parameters determine whether the component is suitable for the electrical and thermal conditions of the target circuit.

Current handling is particularly important in power applications. Excessive current can increase winding losses and temperature rise, while magnetic saturation can reduce effective inductance and affect circuit performance. The appropriate component specification should therefore be selected according to the actual operating conditions rather than the physical size of the inductor alone.

The axial ferrite core structure also makes this type of component suitable for designs requiring a compact leaded magnetic device. Depending on the selected specification, different inductance and current options can be used to meet the requirements of power conversion, filtering and signal-conditioning circuits.

Typical applications include power supplies, DC DC converters, power filtering, current smoothing, LED driver circuits, industrial control equipment, consumer electronics and communication equipment.

The Reliable Magnetic Ferrite Core Axial Leaded Wire Wound Inductor provides a practical fixed-inductance solution for through-hole electronic designs. Its ferrite magnetic core, wire-wound construction and axial lead configuration make it suitable for a wide range of power and signal filtering applications where controlled inductance and reliable PCB mounting are required.
