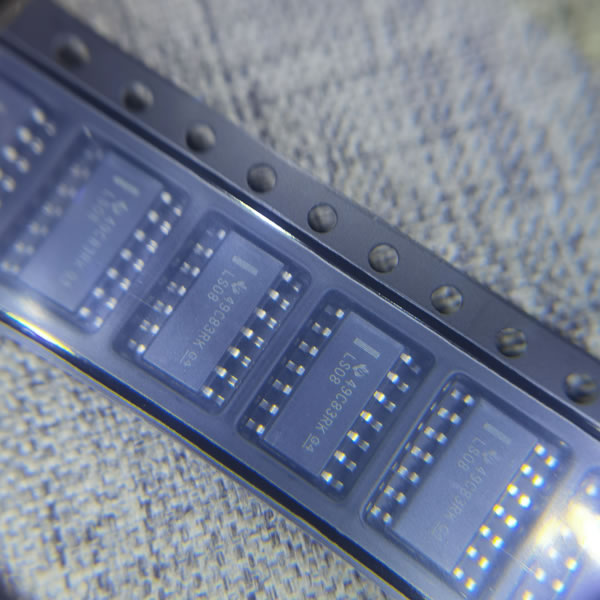

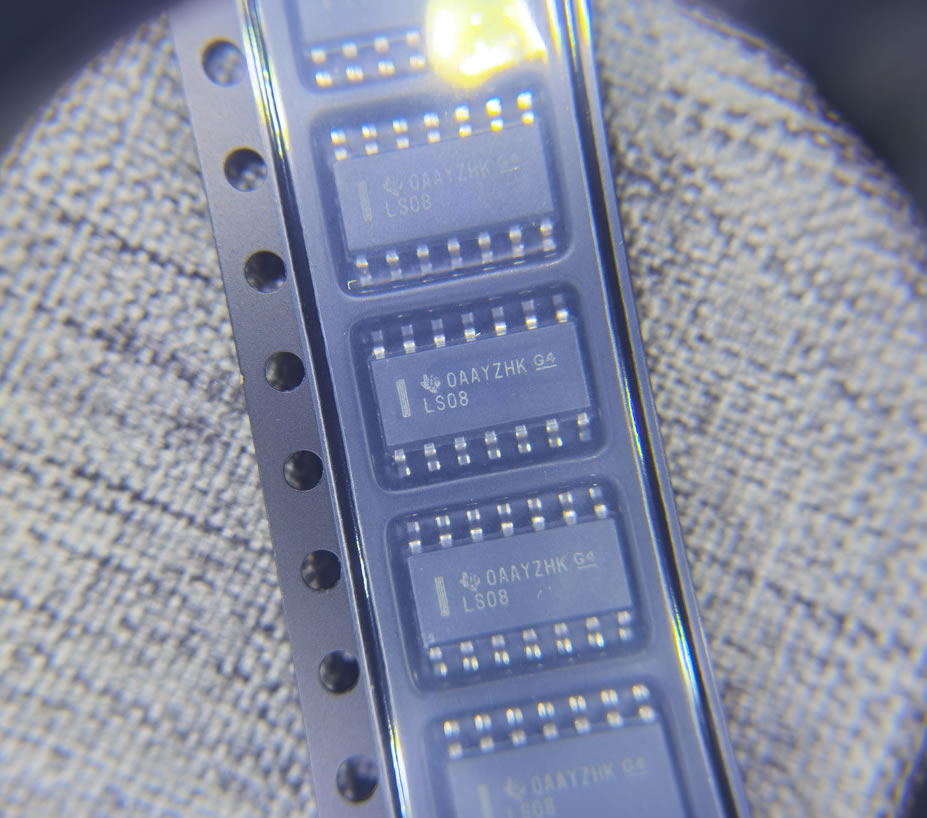

SN74LS08DR

SN74LS08DR is a quad 2-input AND gate integrated circuit from the 74LS logic family, designed using low-power Schottky TTL technology. It provides reliable and stable digital logic operation for a wide range of electronic and industrial applications.

This device contains four independent AND gates, enabling standard logical AND operations with fast switching speed, low power consumption, and strong noise immunity. It is suitable for use in digital control systems where signal integrity and stable logic performance are required.

Key Features

Quad 2-input AND gate configuration

74LS low-power Schottky TTL logic family

Stable operation with standard TTL compatibility

Low power consumption design

High noise immunity and reliable signal processing

Fast switching performance

SOP-14 package for easy PCB integration

Typical Applications

Digital logic circuit design

Industrial automation systems

Embedded system control circuits

Signal processing and logic control modules

Educational and laboratory electronics projects

Computer and communication logic systems

Product Advantages

SN74LS08DR offers stable logic performance, low power consumption, and high reliability, making it a widely used basic building block in digital electronics. Its four independent AND gates provide flexible logic design capability for a variety of control and signal processing applications.
