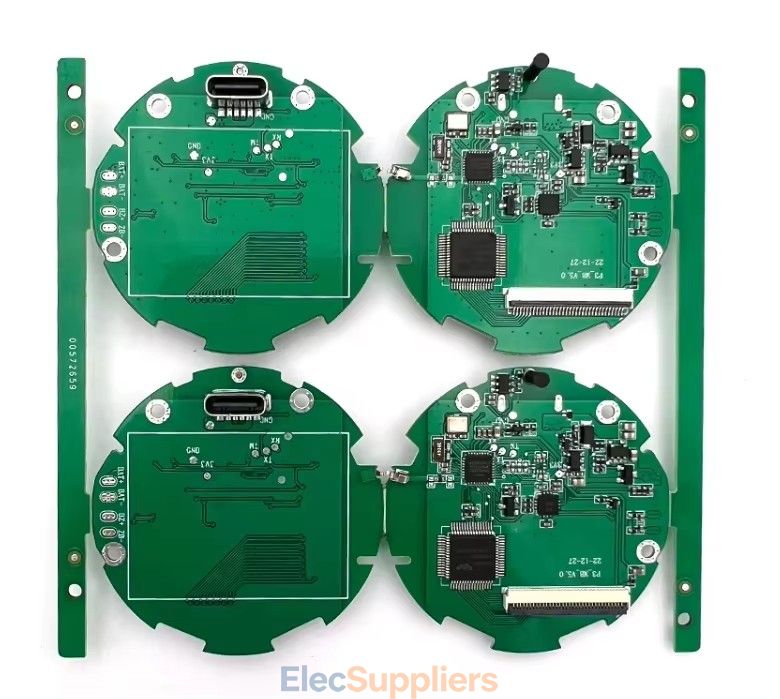

Custom Single-Sided FR-1 PCB with OSP Surface Finish

Custom Single-Sided FR-1 PCB

Custom single-sided FR-1 PCB designed for simple electronic circuits, Bluetooth audio products, receiver boards and consumer electronics. The board uses RoHS-compliant FR-1 material and supports SMT assembly and OEM customization.

Single-Sided PCB Construction

The PCB uses a single-sided circuit structure, making it suitable for electronic products with relatively simple circuit layouts and cost-sensitive production requirements.

Single-sided construction can provide a practical solution for compact electronic products where a multilayer PCB is not required.

FR-1 PCB Material

The board is manufactured using FR-1 paper phenolic material with RoHS compliance. FR-1 is commonly used for simple electronic circuits where cost and basic electrical performance are important considerations.

1oz Copper Layer

The PCB uses 1oz copper with a copper thickness of approximately 35µm. This configuration is suitable for general low-complexity electronic circuits and consumer electronic products.

5mil Line Width and Spacing

The manufacturing process supports a minimum line width and spacing of 5mil / 5mil. This provides sufficient layout capability for many standard single-sided electronic circuit designs.

OSP Surface Treatment

OSP, or Organic Solderability Preservative, is used as the PCB surface treatment. The finish is designed to maintain solderability and provide protection for the exposed copper surface during storage and assembly.

SMT Assembly and OEM Customization

The PCB supports SMT patch assembly and OEM customization. Customers can provide their PCB design and production requirements for customized board manufacturing and assembly.

SMT assembly can also be combined with PCB fabrication to provide a more complete manufacturing solution for electronic products.

Applications

Bluetooth Audio Receivers

Single-sided FR-1 PCBs are suitable for Bluetooth audio receiver boards and related consumer audio electronics where a simple circuit structure is required.

Receiver Boards

The PCB can be customized for receiver circuits and other low-complexity electronic devices.

Consumer Electronics

The cost-effective single-sided construction makes the PCB suitable for various consumer electronic products and small electronic devices.

Audio Equipment

The board can be used in audio-related products where SMT assembly and compact circuit construction are required.

Low-Complexity Electronic Devices

Single-sided FR-1 PCB construction provides a practical option for electronic products that do not require multilayer circuit routing.

Technical Specifications

• PCB Type: Single-Sided PCB

• Base Material: FR-1

• Material Compliance: RoHS

• Board Thickness: 0.8–1.6mm

• Copper Thickness: 1oz / 35µm

• Minimum Aperture: 0.3mm

• Minimum Line Width/Spacing: 5mil / 5mil

• Surface Treatment: OSP

• Assembly: SMT

• Service: OEM Customization

• Origin: Guangdong, China

Cost-Effective PCB Manufacturing

The single-sided FR-1 construction provides a cost-effective option for simple electronic circuits and high-volume consumer products. The combination of FR-1 material, 1oz copper and OSP surface treatment is suitable for applications where straightforward PCB construction and production efficiency are important.

Custom Single-Sided PCB for Electronic Products

This FR-1 PCB provides a practical solution for Bluetooth audio receivers, consumer electronics and other low-complexity electronic products. With OEM customization and SMT assembly available, the board can be manufactured according to specific product and production requirements.
