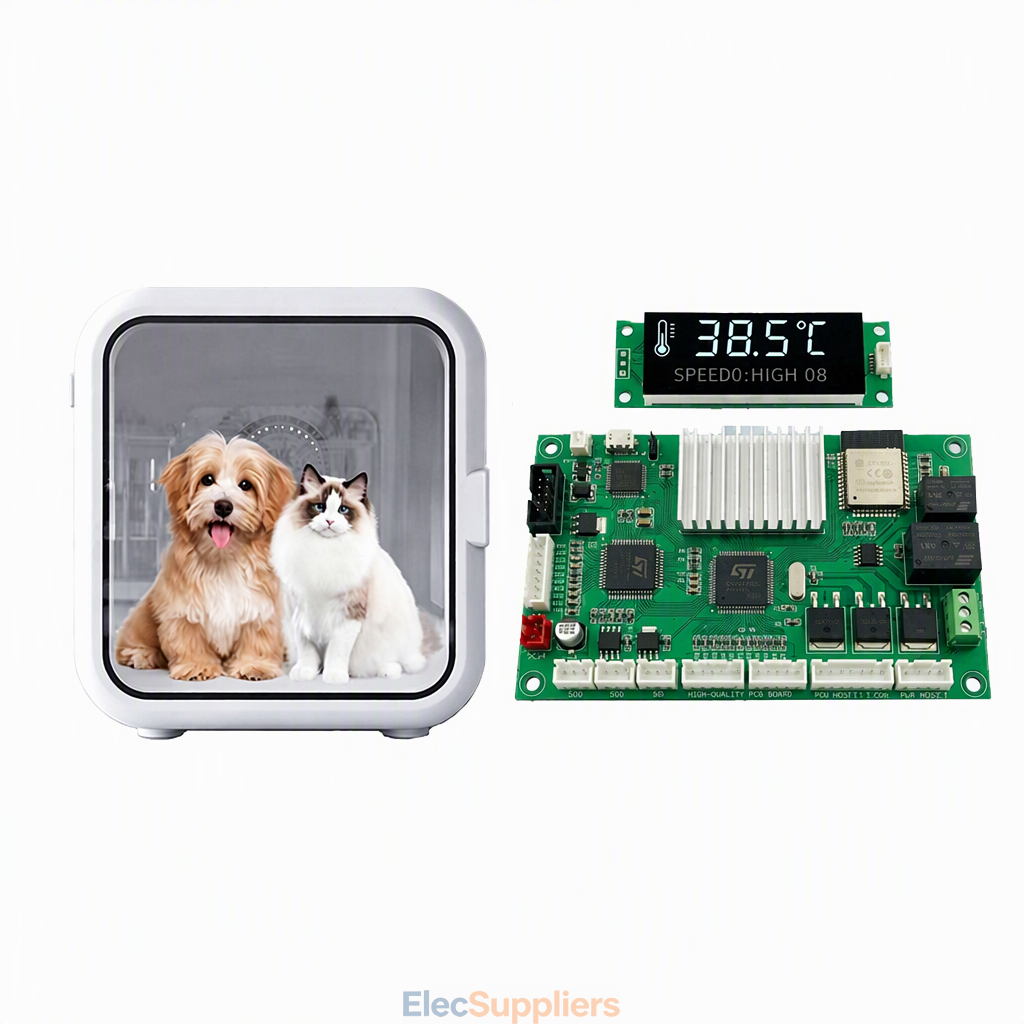

Custom Pet Dryer Control Board PCBA

Our custom pet dryer control board PCBA is designed for smart pet drying cabinets, pet grooming dryers, and other pet-care equipment.

The control board can be customized according to the motor, heater, temperature sensors, display, safety functions, enclosure size, and user-interface requirements of the finished product. OEM and ODM support is available for brands, equipment manufacturers, and product developers.

The manufacturing process can cover PCB fabrication, component sourcing, SMT and DIP assembly, functional testing, and mass production according to the approved design and production requirements.

Designed for Smart Pet Drying Equipment

Pet drying equipment requires stable airflow, controlled temperature, reliable safety functions, and simple operation.

The control board can integrate fan control, heating control, temperature sensing, timing, alarms, display functions, and other control features required by the equipment design.

The hardware and control logic can be adjusted according to the target motor, heating system, sensors, operating modes, and product configuration.

Key Functions

FOC Motor Drive

An optional FOC motor-drive solution can be used for stable and efficient fan-motor control. Airflow levels and motor operating parameters can be configured according to the requirements of the drying equipment.

Temperature Control

Temperature sensors can be integrated into the control system for continuous temperature monitoring. Heating power and operating modes can be configured according to the selected temperature range and sensor feedback.

Safety Protection

Protection functions can be configured according to the equipment design. These may include over-temperature protection, sensor-fault detection, over-current protection, fan-fault detection, abnormal-heating protection, and automatic shut-off.

Ion and Sterilization Interfaces

Optional interfaces can be provided for negative-ion modules, sterilization modules, lighting modules, and other functional accessories required by the finished product.

Custom HMI

The user interface can be configured with touch keys, mechanical buttons, rotary controls, LED indicators, LCD displays, Wi-Fi, Bluetooth, or other control interfaces according to the product requirements.

Timer and Mode Settings

The control system can support timer settings, multiple airflow levels, temperature settings, preset drying modes, standby functions, alarms, and other customized operating logic.

Reference Specifications

Product Type: Pet Dryer Control Board / PCBA

Input Voltage: AC 100–240 V, 50/60 Hz, customizable according to the approved design

Power Range: Approximately 100–2000 W, subject to the final motor, heating system, and product design

Motor Control: FOC motor-drive option available

Core Functions: Temperature control, airflow control, timer functions, display control, sensor monitoring, and safety protection

Manufacturing Services: PCB fabrication, component sourcing, SMT assembly, DIP assembly, functional testing, quality inspection, and box-build support

OEM and ODM Development Support

OEM projects can be manufactured according to approved schematics, PCB files, BOMs, samples, and technical specifications.

For ODM projects, the development process can include product requirement evaluation, circuit design, PCB layout, firmware customization, prototype assembly, functional testing, design optimization, and preparation for mass production.

Available development and manufacturing support can include:

• Product requirement evaluation

• Circuit schematic and PCB layout design

• Motor-drive and heating-control development

• Temperature-control and safety-circuit development

• Firmware and functional customization

• Component sourcing and alternative component evaluation

• Prototype assembly and sample testing

• Functional testing and product optimization

• SMT and DIP assembly

• Quality inspection

• Mass-production support

• Box-build assembly

Quality and Testing

The control board should be tested together with the actual motor, heater, sensors, display, wiring harness, and other relevant components before mass production.

Functional testing can cover fan operation, heating response, temperature monitoring, timer functions, display operation, control interfaces, and safety protection functions.

Final inspection and testing requirements can be established according to the approved drawings, technical specifications, samples, and customer requirements.

Start Your Custom Pet Dryer PCBA Project

Customers can provide product drawings, target functions, input voltage, motor type, heater power, PCB dimensions, display requirements, enclosure specifications, and expected production quantity when requesting a quotation.

For projects that do not yet have complete PCB design files, the development process can begin with the product concept and required functions.

Contact us to discuss your custom pet dryer control board PCBA requirements, prototype development, PCB assembly, and mass production.
