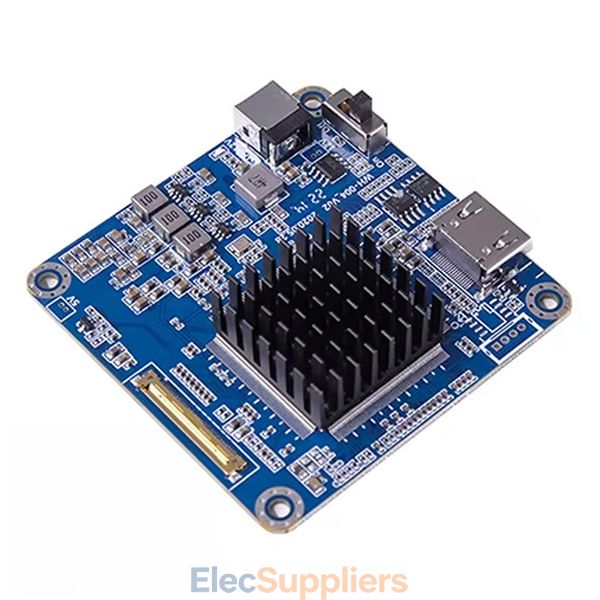

Custom Multilayer PCB Assembly PCBA Manufacturing Service

Custom Multilayer PCB Assembly PCBA Manufacturing Service is designed for electronic products that require higher circuit density, more complex routing and an assembled printed circuit board built to specific design requirements. By combining multilayer PCB fabrication with component assembly, the service provides a manufacturing route from a customer's circuit design to a finished PCBA.

A multilayer PCB contains multiple conductive layers separated by insulating materials. This structure allows signal, power and ground connections to be distributed across different layers rather than being limited to a single or double-sided board. As circuit complexity increases, multilayer construction can provide additional routing space while keeping the overall board size under control.

The assembly stage adds electronic components to the fabricated multilayer PCB. Depending on the product design, the board may incorporate integrated circuits, resistors, capacitors, connectors, sensors, power devices and other electronic components. Surface-mount technology is commonly used where compact component placement and high circuit density are required, while through-hole assembly can be used for selected components when required by the design.

Custom multilayer PCB assembly is particularly suitable for electronic products with limited board space and relatively complex electrical architectures. Separating power, ground and signal routing across multiple layers can make it easier to accommodate dense circuit layouts. The actual layer count and stack-up should be selected according to the electrical, mechanical and manufacturing requirements of the specific product.

A typical project starts with customer design information such as Gerber files and a Bill of Materials. The Gerber files provide the manufacturing information for the PCB, while the BOM identifies the components required for assembly. Additional assembly files can be supplied when the project requires specific component placement, programming or testing procedures.

Multilayer PCB assembly can support a wide range of electronic applications. Industrial control equipment can use multilayer control boards where multiple circuits need to be integrated into a compact design. Communication equipment, IoT devices, consumer electronics, automotive electronics and medical electronics can similarly benefit from customized multilayer board structures.

The multilayer construction also makes PCB layout and stack-up planning particularly important. Signal routing, power distribution, ground planes, vias and impedance requirements may need to be considered together during the design stage. For high-density electronic products, the PCB should be developed with both electrical performance and manufacturability in mind.

Prototype assembly provides an opportunity to verify the multilayer PCB design before larger production quantities are manufactured. Engineers can evaluate the assembled board for electrical functionality, mechanical fit, component placement and connector alignment. Design revisions can then be incorporated into the controlled manufacturing files.

For production quantities, consistency between PCB fabrication and assembly becomes increasingly important. The approved PCB revision, BOM, component specifications and assembly data should remain synchronized throughout the manufacturing process. This helps reduce the possibility of outdated design information being used in subsequent production batches.

Component sourcing is another consideration for multilayer PCBA manufacturing. Components must match the approved BOM and electrical requirements of the design. Where approved alternatives are allowed, replacement components should be evaluated for package dimensions, electrical characteristics, availability and compatibility with the assembly process.

Inspection and testing can also be incorporated according to project requirements. Automated inspection can help identify component placement and soldering issues, while functional testing can be used when the finished PCBA needs to be evaluated under operating conditions. The appropriate inspection strategy depends on the circuit complexity and product requirements.

When preparing a quotation, buyers should normally provide Gerber files, BOM information and relevant assembly documentation. Useful additional information can include PCB layer count, board dimensions, material requirements, copper thickness, surface finish, assembly quantity, component sourcing requirements and testing specifications.

This Custom Multilayer PCB Assembly PCBA Manufacturing Service is suitable for businesses developing compact and functionally complex electronic products. It combines multilayer PCB fabrication with electronic component assembly to support prototype development, customized production and repeat manufacturing of application-specific PCB assemblies.
