STM32F103R8T6 vs STM32F103RCT6: MCU Comparison and Key Differences

ElecSuppliers Part Number ComparisonAug 16, 2026

STM32F103R8T6 and STM32F103RCT6 are both 32-bit ARM Cortex-M3 microcontrollers from the STM32F103 family. They share the same 72MHz maximum CPU frequency and are designed for embedded control applications, but they belong to different memory and device-density classes.

The most important difference is Flash memory. STM32F103R8T6 provides 64KB of Flash, while STM32F103RCT6 belongs to the STM32F103 high-density range and provides 256KB of Flash. The two devices also differ in peripheral resources, package configuration, I/O availability, and overall system capacity.

STM32F103R8T6 vs STM32F103RCT6

At the processor level, both devices use the ARM Cortex-M3 architecture and operate at up to 72MHz.

The main difference is the amount of memory and the peripheral resources available to the design.

STM32F103R8T6 is positioned in the medium-density STM32F103 family. ST specifies 64KB of Flash and 20KB of SRAM for this device class.

STM32F103RCT6 belongs to the higher-density STM32F103 range. ST lists the STM32F103RC family with 256KB of Flash, while the high-density STM32F103xC/D/E family provides up to 64KB of SRAM.

This difference becomes important when an embedded application requires more firmware space, larger communication stacks, graphical functions, data processing, or additional application features.

Flash Memory Difference

Flash memory is one of the clearest differences between STM32F103R8T6 and STM32F103RCT6.

STM32F103R8T6 provides 64KB of Flash memory.

STM32F103RCT6 provides 256KB of Flash memory.

This gives STM32F103RCT6 four times the Flash capacity of STM32F103R8T6.

For a small embedded controller, 64KB may be sufficient for the application firmware. However, larger firmware projects can quickly require more space when they include communication protocols, bootloaders, graphical interfaces, diagnostic functions, USB functionality, or complex control algorithms.

The additional Flash capacity of STM32F103RCT6 therefore provides more room for firmware expansion.

SRAM and Runtime Memory

SRAM is used during program execution for variables, buffers, stacks, peripheral data, and temporary calculations.

STM32F103R8T6 is specified with 20KB of SRAM.

The STM32F103RC high-density family provides a larger SRAM resource, with the high-density STM32F103xC/D/E family supporting up to 64KB depending on the specific device.

This can be important for applications that process larger communication buffers, sensor data, display information, or more complex software structures.

Engineers comparing the two MCUs should therefore check actual SRAM usage rather than considering Flash capacity alone.

CPU Performance

There is no major difference in maximum CPU frequency between these two devices.

Both STM32F103R8T6 and STM32F103RCT6 use an ARM Cortex-M3 core with a maximum frequency of 72MHz.

Therefore, choosing STM32F103RCT6 does not mean that the CPU itself runs at a higher clock frequency.

The main advantage comes from the larger memory capacity and higher-density peripheral architecture.

For applications that are already limited by CPU processing speed rather than memory, moving from R8T6 to RCT6 may not provide a significant improvement in raw clock performance.

Peripheral Resources

Another important difference is peripheral availability.

The medium-density STM32F103 family includes two 12-bit ADCs, three general-purpose 16-bit timers plus one PWM timer, up to two I2C interfaces, up to two SPI interfaces, three USARTs, USB, and CAN.

The higher-density STM32F103 family provides a larger peripheral set. ST's documentation describes the high-density devices with three 12-bit ADCs, additional timers, and expanded communication resources.

This makes the RCT6 platform more suitable for designs that require a broader set of integrated peripherals.

When migrating between devices, however, engineers should verify the exact peripheral mapping for the specific part number rather than assuming that all STM32F103 devices have identical resources.

Package and PCB Considerations

Package selection is another important point when comparing STM32F103R8T6 and STM32F103RCT6.

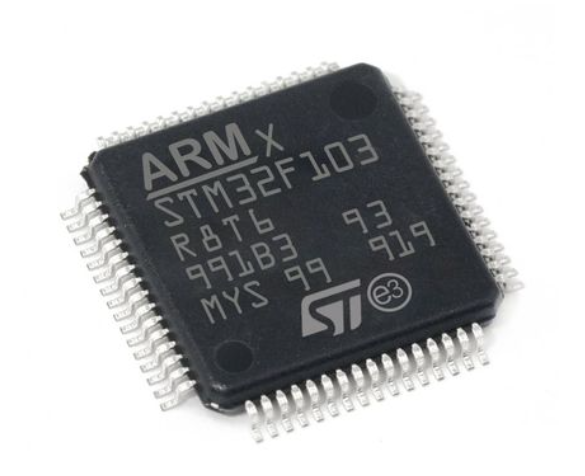

The STM32F103R8T6 is available in an LQFP64 package with dimensions of 10 × 10 × 1.4mm according to ST's product information.

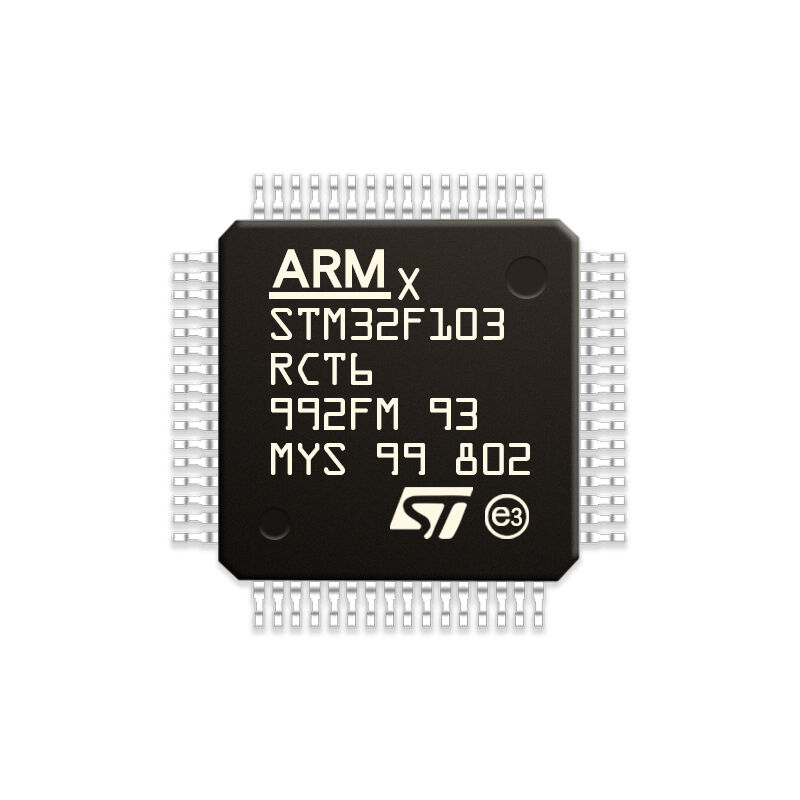

STM32F103RCT6 is also associated with the LQFP64 package in its ordering information.

This makes the package designation useful when evaluating the two devices for an existing PCB.

However, the same package does not mean that every pin function is identical.

Engineers should compare the complete pin assignment, power pins, I/O functions, alternate functions, ADC channels, communication interfaces, and other dedicated functions before changing the MCU on an existing board.

Operating Voltage

Both devices belong to the STM32F103 family and operate from a 2.0V to 3.6V supply range.

This provides a common electrical foundation for many 3.3V embedded designs.

Even so, the complete power architecture should be reviewed when changing MCU models. External peripherals, analog circuits, reset circuitry, clocks, and voltage-sensitive interfaces can all affect the hardware migration.

ADC Resources

Analog-to-digital conversion is important in systems that measure sensors, voltage, current, temperature, or other analog signals.

STM32F103R8T6 belongs to the medium-density device class with two 12-bit ADCs and up to 16 channels across the family.

The higher-density STM32F103 family adds ADC resources. ST describes the STM32F103xC/D/E devices with three 12-bit ADCs and up to 21 channels.

For applications with multiple analog inputs, this can make the RCT6 more attractive.

Communication Interfaces

Both devices support common embedded communication functions such as USART, SPI, I2C, USB, and CAN within the STM32F103 architecture.

The medium-density family provides up to three USARTs, two SPI interfaces, two I2C interfaces, USB, and CAN.

The higher-density STM32F103 family expands the available communication and peripheral resources.

For a design that uses only basic UART, SPI, or I2C communication, the difference may not be significant. For a more complex controller with several simultaneous interfaces, the higher-density device can provide additional design flexibility.

Which MCU Is Better for a New Design?

Neither STM32F103R8T6 nor STM32F103RCT6 is universally better.

STM32F103R8T6 can be a practical choice when the application has modest firmware requirements and does not need the additional resources of the higher-density family.

STM32F103RCT6 is more suitable when the application requires substantially more Flash memory, additional SRAM, more analog resources, or a larger peripheral set.

The decision should therefore be based on the actual system requirements rather than simply choosing the MCU with the larger memory capacity.

STM32F103R8T6 for Compact Embedded Controllers

STM32F103R8T6 can be considered for embedded products where the firmware fits comfortably within its 64KB Flash capacity.

Typical applications can include control boards, sensor controllers, communication devices, small automation products, motor-control systems, and other embedded equipment.

Its 72MHz Cortex-M3 core and integrated peripherals provide the basic capabilities required by many mainstream embedded designs.

STM32F103RCT6 for Larger Embedded Designs

STM32F103RCT6 becomes more attractive when firmware and memory requirements increase.

The 256KB Flash capacity provides substantially more space for application software than the 64KB available on STM32F103R8T6.

Applications with larger firmware, multiple communication interfaces, more analog processing, or more sophisticated control logic can benefit from the higher-density device.

The STM32F103RC family is officially described by ST as a 256KB Flash, 72MHz Cortex-M3 MCU with motor-control, USB, and CAN capabilities.

Can STM32F103R8T6 Be Replaced by STM32F103RCT6?

In some designs, STM32F103RCT6 can provide a higher-capacity platform than STM32F103R8T6, but it should not automatically be considered a drop-in replacement.

Engineers should verify the exact package, pin assignment, power requirements, peripheral mapping, memory requirements, firmware configuration, clock setup, and PCB layout.

The same STM32F103 family name and similar package do not eliminate the need for hardware and software verification.

STM32F103R8T6 vs STM32F103RCT6: Which One Should You Choose?

The simplest distinction is memory and device density.

Choose STM32F103R8T6 when 64KB Flash and its available peripheral resources are sufficient for the application.

Consider STM32F103RCT6 when 256KB Flash and the additional resources of the higher-density STM32F103 platform are useful.

Both devices provide a 72MHz ARM Cortex-M3 architecture, making them suitable for many embedded control applications.

For an existing product, engineers should also consider the current firmware size, SRAM usage, GPIO allocation, ADC requirements, communication interfaces, timer usage, and PCB design before selecting one device over the other.

Final Comparison

STM32F103R8T6 and STM32F103RCT6 share the same basic Cortex-M3 architecture and 72MHz maximum CPU frequency, but they target different levels of system resources.

STM32F103R8T6 provides 64KB Flash and 20KB SRAM and belongs to the medium-density STM32F103 family.

STM32F103RCT6 provides 256KB Flash and belongs to the higher-density STM32F103 family, offering additional memory and peripheral resources.

For small and relatively simple embedded designs, STM32F103R8T6 can provide sufficient resources. For applications requiring more firmware space and greater peripheral capacity, STM32F103RCT6 can be a more suitable choice.

The final selection should be based on the complete hardware, firmware, memory, peripheral, and system requirements of the application.
