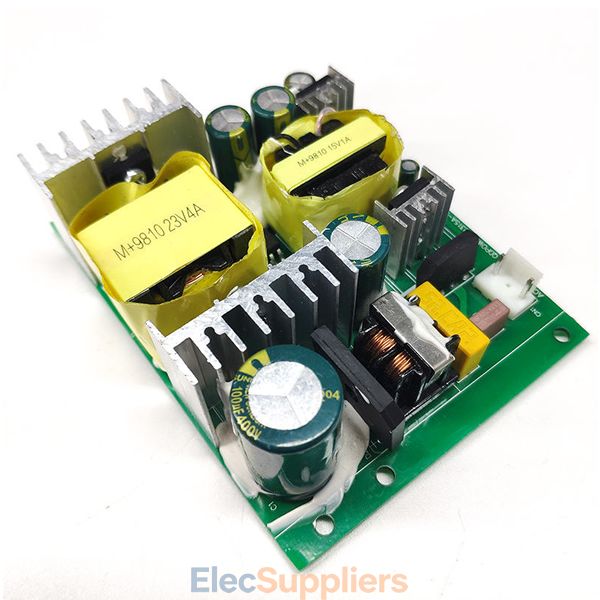

Triple Output AC DC Power Supply Module Board for Electronic Equipment

The triple output AC DC power supply module is designed to convert AC input power into multiple DC output rails for electronic equipment and control systems. With a 150–240V AC input range, the module can be integrated into equipment that requires an internal AC to DC power conversion stage.

The board-level design makes the module suitable for direct installation inside electronic equipment rather than use as a conventional external power adapter. This allows the power conversion section to be incorporated into the internal electrical architecture of the finished product.

Multiple DC outputs are useful for electronic systems containing different circuits with separate voltage and current requirements. The specified outputs include 32V at 4A and 15V at 1A, providing different power rails from the same AC input source.

Using a multi-output power supply module can simplify the internal power architecture of equipment by allowing several electronic sections to receive power from a single conversion board. This can be useful in control systems where different circuits require different DC supply conditions.

The module is suitable for industrial control equipment, automation systems and electronic devices that require an internal AC-DC power supply. Its board-mounted format allows the module to be positioned according to the available enclosure space and the electrical connection arrangement of the equipment.

For electronic equipment with separate control, interface and power circuits, multiple output rails can help organize the internal power distribution. The actual application should be selected according to the required voltage, current, thermal conditions and mechanical installation requirements.

As an AC-DC conversion board, the module provides the power conversion stage between the equipment's AC input and downstream DC circuits. It can therefore be integrated into OEM electronic equipment, industrial control products, instrumentation and other systems requiring multiple DC power outputs.

The board configuration is particularly suitable for applications where the power supply needs to remain inside the finished equipment. Compared with an external adapter, an integrated power module can be incorporated directly into the product's internal electrical and mechanical design.

Product Features

• Triple-output AC DC power supply module

• AC input range of 150–240V

• Board-mounted power supply design

• 32V 4A DC output

• 15V 1A DC output

• Multiple DC output rails from one AC input

• Suitable for internal equipment integration

• Compact power conversion solution

• Suitable for industrial and electronic equipment

• Designed for control and power supply applications

Technical Specifications

• Product Type: AC DC Power Supply Module Board

• Input Voltage: AC 150–240V

• Output Configuration: Triple Output

• Identified DC Output: 32V / 4A

• Additional Identified DC Output: 15V / 1A

• Mounting Format: Board Mount

• Conversion Type: AC to DC

• Application: Electronic and Industrial Equipment

• Product Configuration: Power Supply Module
